Item description:

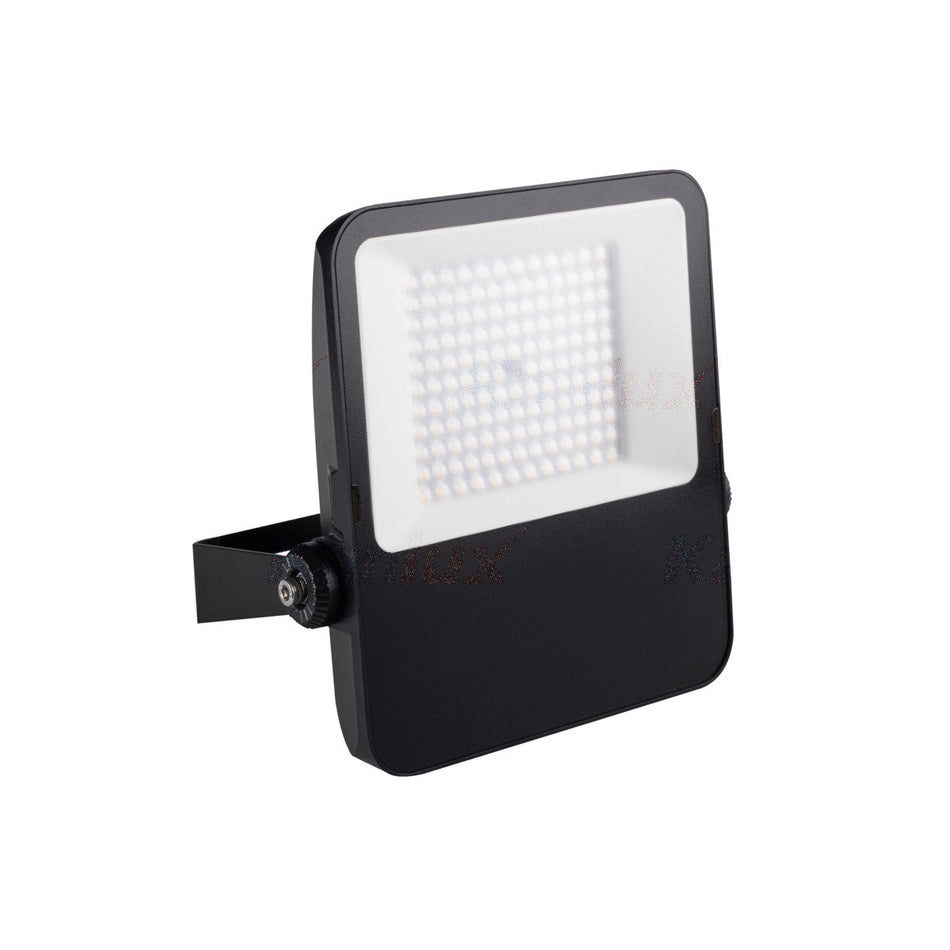

ANTEM is a series of outdoor LED spotlights. First and foremost, the LED spotlights are easy to connect and thanks to the integrated plug-in terminal, we also avoid unsightly cable connections.
ANTEM LED offers a wide range of power options: from 10 W to 100 W, as well as versions with and without motion sensor. The opal diffuser with a delicate prism gently scatters the light and reduces the glare effect.
The version without motion sensor has protection class IP65 and the version with motion sensor has protection class IP44. The sensor can be adjusted in terms of lighting duration, light intensity and detection range.

Technical data:

Color :	black
Housing material :	Aluminium alloy
Material of the protective screen :	Tempered glass

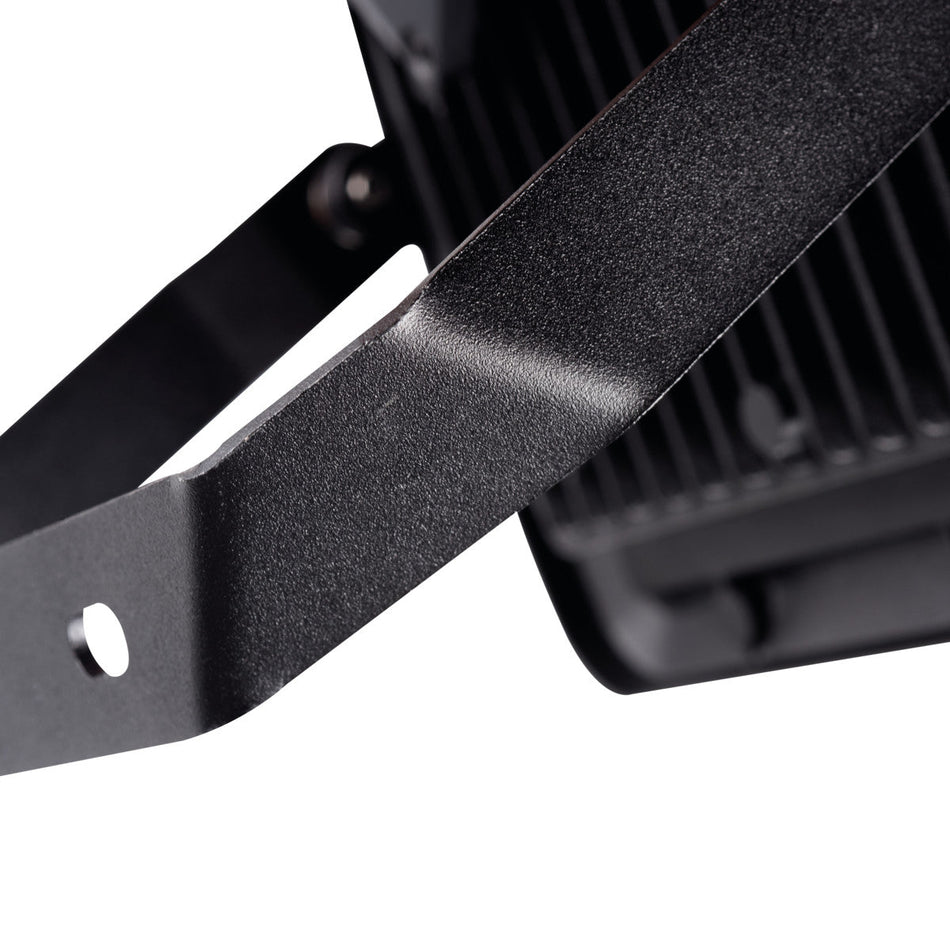

Boom material :	metal
Scope of application :	inside and outside

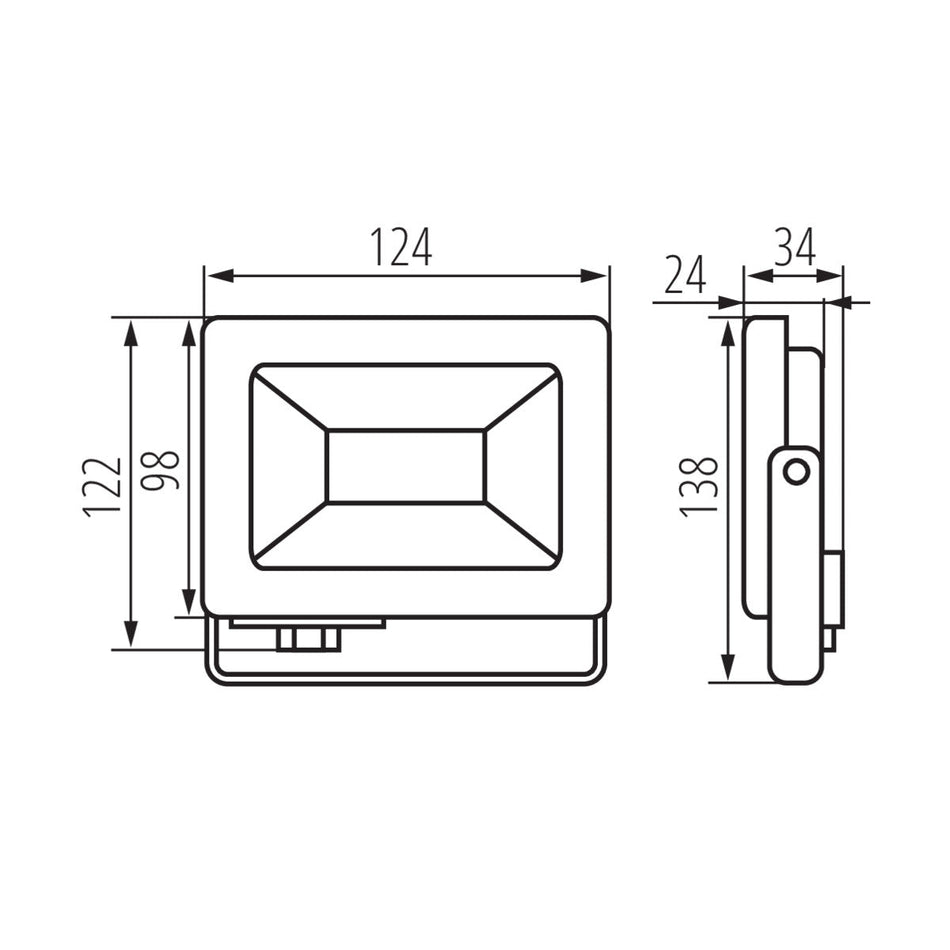

Height (mm) :	138
Width (mm] :	34
Length [mm] :	124
Weight :	270g
Nominal voltage [V] :	220-240 AC
Nominal frequency [Hz] :	50
Maximum power [W] :	20
Integrated LED light source :	Yes
Luminous flux [lm] :	1600
Beam angle [°] :	100
Number of switching cycles :	≥10000
Lifetime [h] :	15000
Color temperature [K] :	4000
Color Uniformity [SDCM] :	≤6
Colour rendering index Ra :	≥80
Lamp ignition time [s] :	≤0.5
Lamp warm-up time [s] :	≤1
Diode type :	LED SMD
Possibility of operation with a dimmer :	no
Color temperature :	neutral white
Protection class against electric shock :	I
IP class (protection class) :	65
Ambient temperature range [°C] :	-20÷35
Installation location :	Wall mounting, ceiling mounting, floor mounting
Luminaire adjustable in vertical plane [°] :	180
Connection type :	Cube with screws
Cable cross-section [mm2] :	1-1.5
The luminaire consists of built-in LED lamps with the energy classes :	A++,A+,A
Min. installation distance to the illuminated object :	1m
Replaceable lamp/light source :	no
Luminous efficacy (lm/W) :	80

with motion sensor :
Height (mm) :	158
Width (mm] :	63
Length [mm] :	125
Weight :	300g
IP class (protection class) :	44
Sensor range [m] :	max10
Angle of action of the sensor [°] :	120
Sensor switching time (sec.-min.) :	10-10
Sensor Type :	PIR
Motion detection :	Yes
Sensitivity setting :	Yes
Adjustable residual light intensity at which the sensor detects movement [lx]. :	2-2000
