LED12 G4 is an LED capsule based on new, very efficient LEDs.
The lighting angle of the LED capsule is 160º, the service life is 20,000 hours and the output is up to 140 lumens per watt.

TECHNICAL DATA:

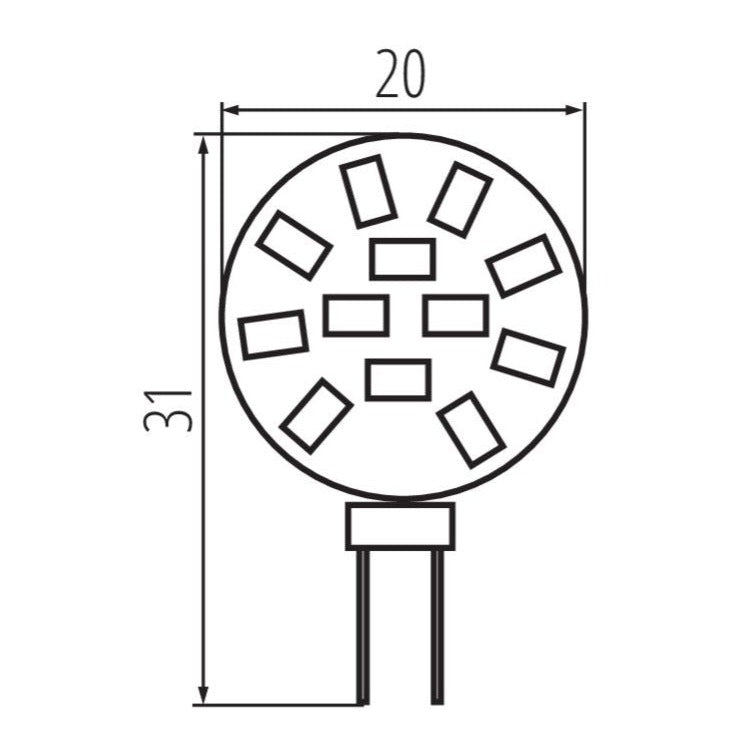

Height (mm) :	31
Diameter [mm] :	20
Weight :	2g
Rated voltage [V] :	12AC; 12 DC
Light source :	JC
Diode type :	LED SMD
Rated power [W] :	1.2
Rated current lamp/luminaire [mA] :	AC 170 / DC 100
Base :	G4
Rated useful luminous flux [lm] :	165/170
Luminous efficacy (lm/W) :	138 / 142
Color temperature [K] :	3000/4000
Color Uniformity [SDCM] :	≤6
Color rendering index Ra :	≥80
Color temperature :	warm white / neutral white
Number of switching cycles :	≥20000
Nominal beam angle [°] :	120
Nominal nominal luminous flux [lm] :	135/140
Lamp life[h] :	20000
Factor of maintaining the luminous flux at the end of the nominal operating time [%] :	≥70
Ignition time [s] :	≤0.5
Nominal beam angle [°] :	120
Mercury content :	no
Lamp warm-up time up to 60% of full luminous flux [s] :	insignificant
Factor of maintaining the luminous flux after 6000h [%] :	≥80
Warm-up time of the lamp up to 95% [s] :	<2
Factor of lamp operating time after 6000h [%] :	≥90
Indication of premature lamp failure :	<5% per 1000h
Possibility of operation with a dimmer :	no
The luminaire is designed for accent lighting :	no
EEI of light source :	(E)
