LED 3-phase track spotlight | Black | Warm white or neutral white | 18W / 28W / 38W | BTL LED
Artikelnummer:
35651
EAN:
5905339356512
3-Phasen-System planen
Passendes Zubehör direkt im Plan auswählen
Schienen, Einspeisung, Verbinder und Verschlusskappen passend zusammenstellen.
Konfigurator starten
NOVOOM SERVICE
Schneller Versand
Kauf auf Rechnung
Einfache Rückgabe

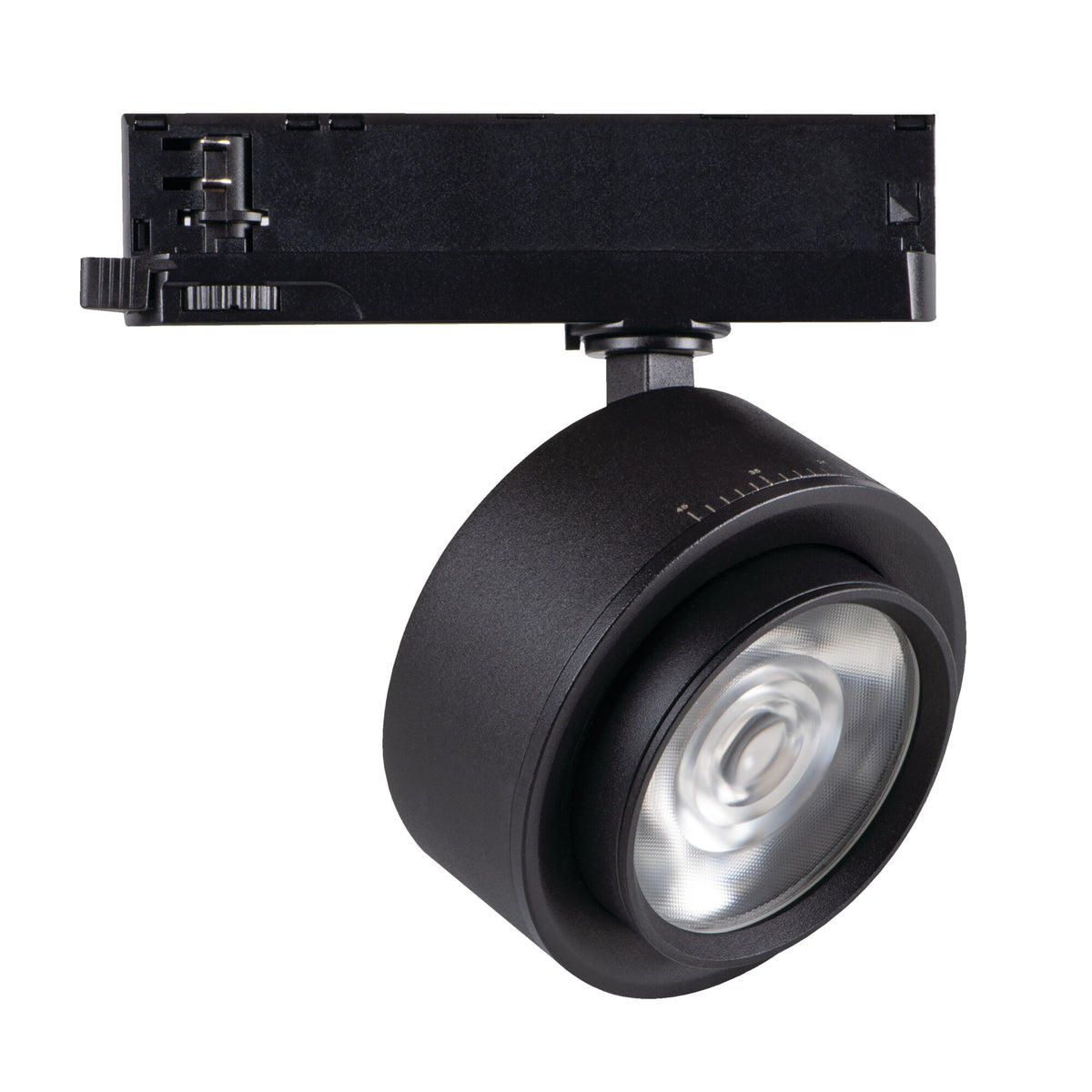

- BTL LED is a new luminaire design adapted for the TEAR system and most 3-phase track lighting systems.
- The luminaires are equipped with a power supply integrated into the adapter. BTL are spotlights with a lens and an adjustable beam angle from 15⁰ to 45⁰.
- With BTL, we can choose the wattage (18W, 28W, 38W), the housing color (white or black), and the light color (warm or neutral). The BTL luminaire series has a high color rendering index Ra 90+, and its high quality of workmanship is confirmed by a 5-year warranty.
Matching track rails can be found here: 3-Phase Track Rails 1m and 2m
Connection accessories can be found here: 3-Phase Connection Accessories
OUR OFFER FOR YOU:
We would be happy to provide you with a customized offer that includes all necessary spotlights, rails, and connection accessories. Simply send us your requirements or a sketch by email to info@novoom.de and we will take care of the rest. Our expert team is at your disposal to ensure you receive the optimal lighting solution for your project.
We would be happy to provide you with a customized offer that includes all necessary spotlights, rails, and connection accessories. Simply send us your requirements or a sketch by email to info@novoom.de and we will take care of the rest. Our expert team is at your disposal to ensure you receive the optimal lighting solution for your project.
| GENERAL DATA | |
|---|---|
| Color: | Black |
| Mounting location: | Ceilings / Wall |
| Application area: | indoor |
| Min. installation distance to the illuminated object: | 0.5m |
| Possibility of operation with a dimmer: | no |
| Integrated LED light source: | yes |
| TECHNICAL DATA | |
| Rated voltage [V]: | 220-240 AC |
| Rated frequency [Hz]: | 50 |
| Maximum power [W]: | 18W / 28W / 38W |
| Protection class against electric shock: | II |
| Diode type: | LED COB |
| Luminous flux: | 18W - 1800lm 28W - 3000lm 38W - 4000lm |
| Color temperature: | Warm white (3000k) Neutral white (4000k) |
| Color consistency in MacAdam ellipses: | ≤6 |
| Color rendering index: | 90 |
| Lifespan: | 50,000h |
| Number of switching cycles: | ≥30000 |
| Beam angle: | 15-45° |
| Luminous efficacy: | 100 lm/W |
| Housing material: | Aluminum alloy |
| Lamp warm-up time: | ≤1s |
| Lamp ignition time: | ≤0.5s |
| Luminaire adjustable horizontally: | 340° |
| Luminaire adjustable vertically: | 90° |
| IP class (protection rating): | IP20 |
