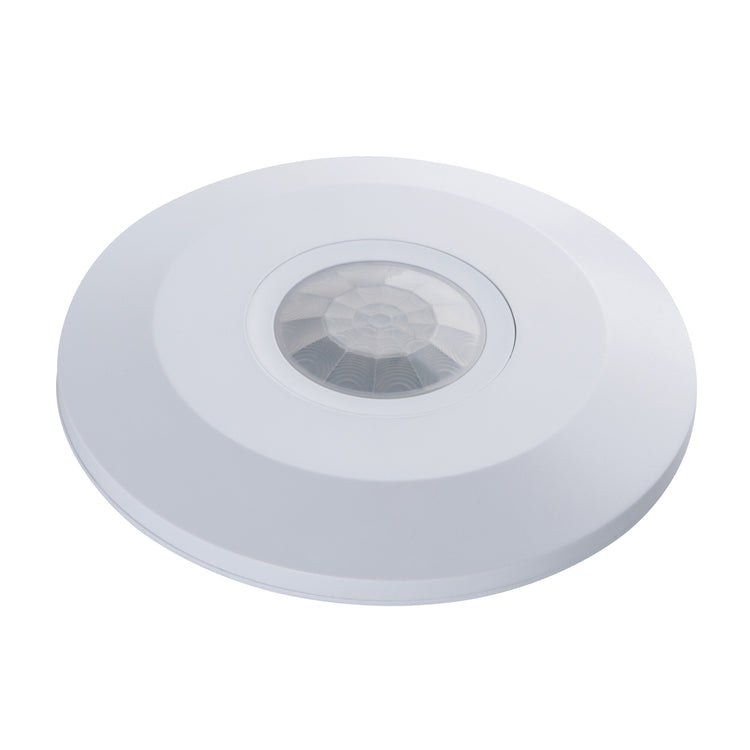

PIR Motion Detector ZONA FLAT | Ultra-Compact | Black / White | 8 m Detection Range
Couldn't load pickup availability
The PIR Motion Detector ZONA FLAT impresses with its ultra-compact design and is perfect for discreet ceiling mounting in modern interiors. With precise motion detection, flexible setting options, and two color variants (black or white), it offers an intelligent and elegant solution for automatic lighting control.
Advantages at a Glance
-
Ultra-compact design – flat construction for discreet ceiling installation
-
Precise motion detection – range up to 8 m, detection angle H 360° / V 120°
-
Individually adjustable – illumination time 10 seconds to 15 minutes
-
Adjustable light sensitivity – only reacts at desired brightness (3–2000 Lux)
-
Two color variants – available in black or white
-
Intelligent lighting control – ensures greater comfort, safety, and energy savings
The ZONA FLAT motion detector is the ideal choice for anyone who values discreet technology and maximum functionality. Thanks to its minimalist design, the sensor harmoniously blends into any room design and remains almost invisible. The integrated PIR technology reliably detects movements within an 8-meter radius and automatically switches on the light when needed.
With its flexible setting options – from switching time (10 s – 15 min) to light sensitivity (3–2000 lx) – the motion detector can be perfectly adapted to individual needs. This makes it suitable for use in hallways, stairwells, offices, or living spaces. Automatic control not only increases comfort but also significantly reduces energy consumption.
Whether in black or white – the ZONA FLAT combines modern, minimalist design with high functionality and makes your lighting smart and efficient.
| GENERAL DATA: | |
| Color | White |
| Installation location | Ceiling mounting |
| Application area | Indoor |
| Micro gap between relay contacts | Yes |
| Height (mm) | 27 |
| Diameter (mm) | 115 |
| TECHNICAL DATA: | |
| Rated voltage [V] | 220–240 AC |
| Rated frequency [Hz] | 50 |
| Protection class against electric shock | II |
| Material | Plastic |
| Ambient temperature range [°C] | 5 ÷ 25 |
| Sensor Type | PIR |
| Connection type | Terminal block |
| Cross-sectional area of used cables [mm²] | 0.75 ÷ 1.5 |
| Sensor switching time (Sec.–Min.) | 10–15 |
| Sensor detection angle [°] | H 360 / V 120 |
| Max. operating time [min.] | 15 |
| Minimum operating time (s) | 10 |
| Maximum power (VA) | 2000 |
| Adjustable ambient light illuminance [lx] | 3–2000 |
| IP class (protection type) | IP20 |
| Sensor range [m] | max. 8 |
