Recessed floor spotlight GORDO N 1W CW-O-SR Round 1W CW-O-SR IP67 230V
Compressive strength of up to 2 tons
Schneller Versand
Kauf auf Rechnung möglich
Einfache Rückgabe über unser Retourenportal
Couldn't load pickup availability
Notify when available
Fragen zu diesem Artikel oder Projekt?

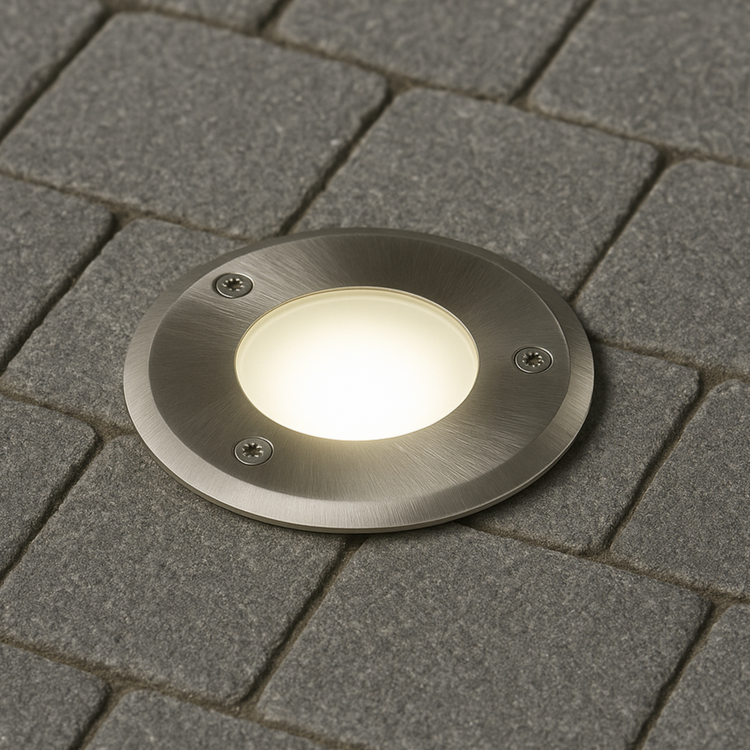

GORDO LED14 is a drive-over ground recessed luminaire with an integrated LED light source. Made from the highest quality materials, this luminaire has a compressive strength of up to 2 tons. Protection class IP-67.
| GENERAL DATA: | |
|---|---|
| Color: | silver |
| Installation location: | For installation in the ground, drive-over |
| Application area: | outdoor |
| Min. installation distance to the illuminated object: | 0.1m |
| Option for operation with a dimmer: | no |
| Beam direction: | up |
| Height (mm): | 94 |
| Diameter [mm]: | 95 |
| Number of chokes: | 1 |
| Integrated LED light source: | yes |
| TECHNICAL DATA: | |
| Rated voltage [V]: | 220-240 AC |
| Rated frequency [Hz]: | 50 |
| Maximum power [W]: | 1 |
| Protection class against electric shock: | I |
| Diode type: | LED SMD |
| Luminous flux [lm]: | 50 |
| Luminous flux of the luminaire Φuse [lm]: | 85 |
| Luminous flux of the luminaire Φuse [lm]: | in a wide cone (120°) |
| Color temperature: | cool white |
| Correlated color temperature [K]: | 6500 |
| Color consistency in MacAdam ellipses: | 6 |
| Color rendering index: | 80 |
| Lifespan [h]: | 20000 |
| Number of switching cycles: | >10000 |
| Beam angle [°]: | 80 |
| Luminous efficacy (lm/W): | 50 |
| Ambient temperature range [°C]: | -20 to 35 |
| Housing material: | Aluminum alloy |
| Panel/Frame material: | Stainless steel |
| Protective glass material: | Tempered glass |
| Connection type: | free wire ends |
| Cable type: | H05RN-F |
| Cable length [m]: | 0.2 |
| Cable diameter [mm²]: | 0.75 |
| Permissible static load (kN): | 20 |
| IK class (impact resistance): | 08 |
| IP class (protection rating): | 67 |
