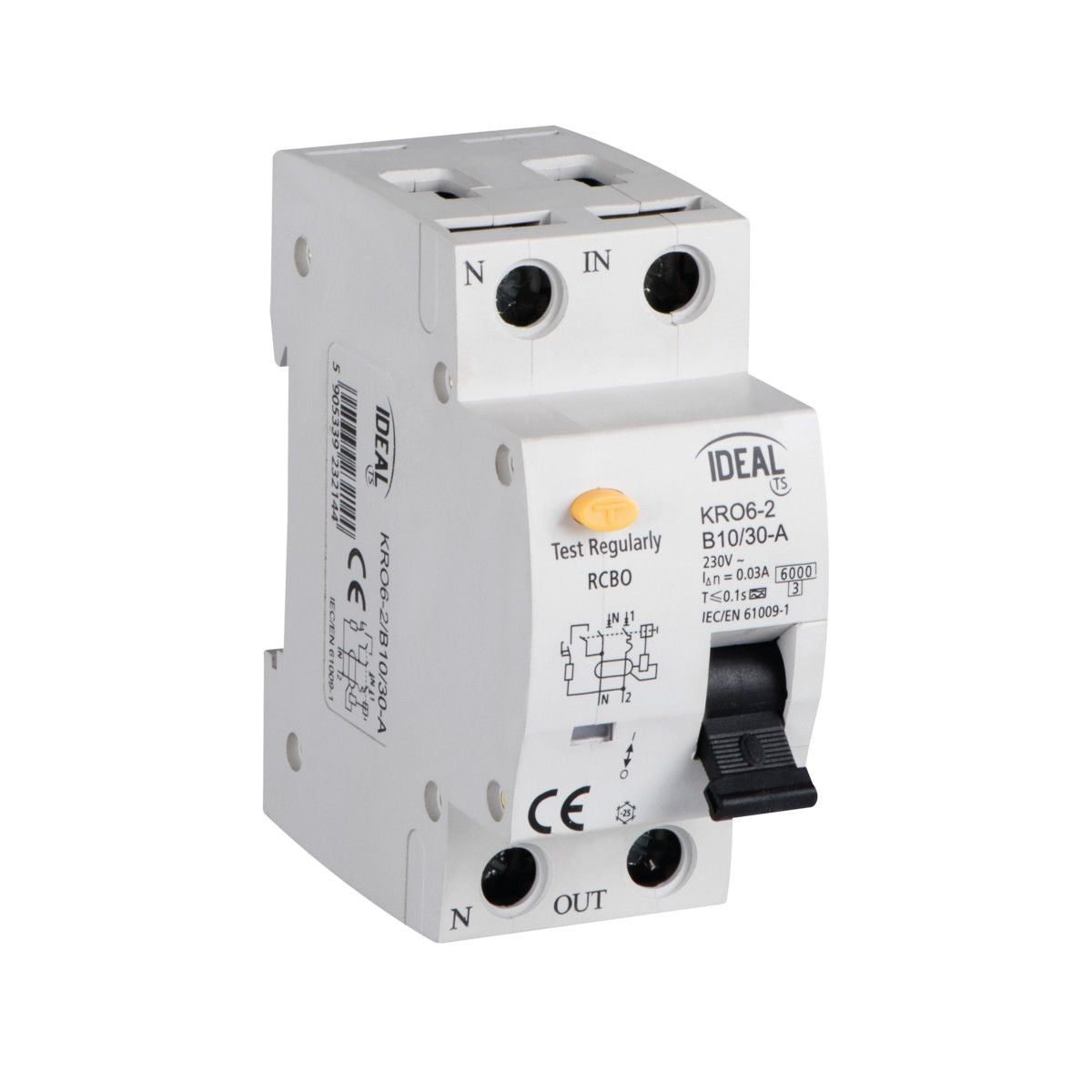

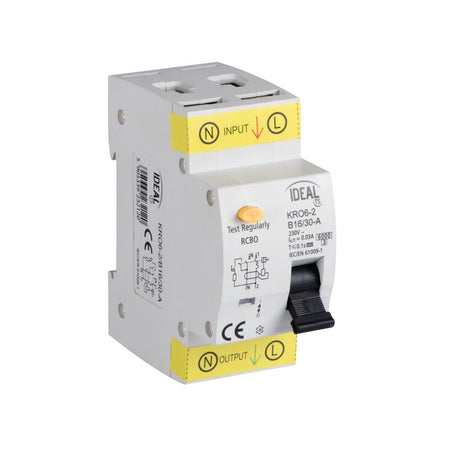

Residual current circuit breaker with overcurrent protection A, white + yellow, 2x / IP20 / 230V
Antwort innerhalb von 24 h · Kein Newsletter
Fragen Sie einen Experten
Kostenloser Versand ab 70€
Geld-zurück-Garantie & Käuferschutz
Kostenfreie Rücksendung (ab 40 €)
🔒 Sichere Zahlung & Käuferschutz
PayPal · Klarna · Kreditkarte · Apple Pay u. v. m.
Technical data:
| Color: | White yellow |
| Height (mm): | 81 |
| Width (mm]: | 35 |
| Length [mm]: | 75 |
| Weight: | 180g |
| Rated voltage [V]: | 230 AC |
| Rated frequency [Hz]: | 50/60 |
| Rated current [A] : | 10/16 |
| Nominal residual current [mA]: | 30 |
| Cable cross section [mm2]: | 10÷16 |
| Ambient temperature range [°C]: | -25÷40 |
| IP class (protection rating): | 20 |
| Residual current protection type: | A |
| Rated short-circuit current [A]: | 6000 |
| Energy limitation class: | 3 |
| Trigger characteristics: | b |
| Number of modules: | 2 |
| Application: | 2 |
| Installation location: | On the TH35 rail |
