Kanlux ANTEM LED 30W-NW B / SE B Outdoor Spotlight | 33202 / 33207
Artikelnummer:
33207
EAN:
5905339332073
NOVOOM SERVICE
Schneller Versand
Kauf auf Rechnung
Einfache Rückgabe
Kanlux ANTEM is a series of compact LED outdoor floodlights for courtyards, driveways, facades, gardens, and commercial outdoor areas. The black aluminum housing, the tempered glass lens, and the wide beam angle ensure robust and uniform illumination. The version without a motion sensor is rated IP65; the PIR version features IP44 and an adjustable motion sensor.
Advantages at a glance
- 30 W LED outdoor floodlight with 2400 lm luminous flux
- Neutral white light with 4000 K and CRI 80
- Wide beam angle of 100°
- Choice of IP65 without sensor or IP44 with PIR motion sensor
- Light head adjustable vertically up to 180°
- Integrated LED light source, non-dimmable
Technical data – both versions
| Power | 30 W |
| Luminous flux | 2400 lm |
| Useful luminous flux Φuse | 2340 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 4000 K (neutral white) |
| Color rendering index | Ra 80 |
| Color consistency | SDCM ≤ 6 |
| Beam angle | 100° |
| LED technology | Integrated SMD LED |
| Nominal voltage | 220–240 V AC |
| Frequency | 50 Hz |
| Power factor | 0.9 |
| Protection class | Class I |
| Dimmable | No |
| Lifespan | 15,000 h |
| Switching cycles | ≥ 10,000 |
| Energy efficiency class | F |
| Color | Black |
| Housing | Aluminum alloy |
| Protection lens | Tempered glass |
| Mounting bracket | Metal |
| Adjustment range | Vertical 180° |
| Mounting | Wall, ceiling, or floor |
| Ambient temperature | −20 to +35 °C |
| Connection | Screw terminal |
| Wire cross-section | 1–1.5 mm² |
| Minimum distance to illuminated object | 1 m |
Version without motion sensor
| Kanlux model | ANTEM LED 30W-NW B |
| Ingress protection | IP65 |
| Dimensions W × H × D | 148 × 158 × 36 mm |
| EPREL ID | 507092 |
| Motion sensor | No |

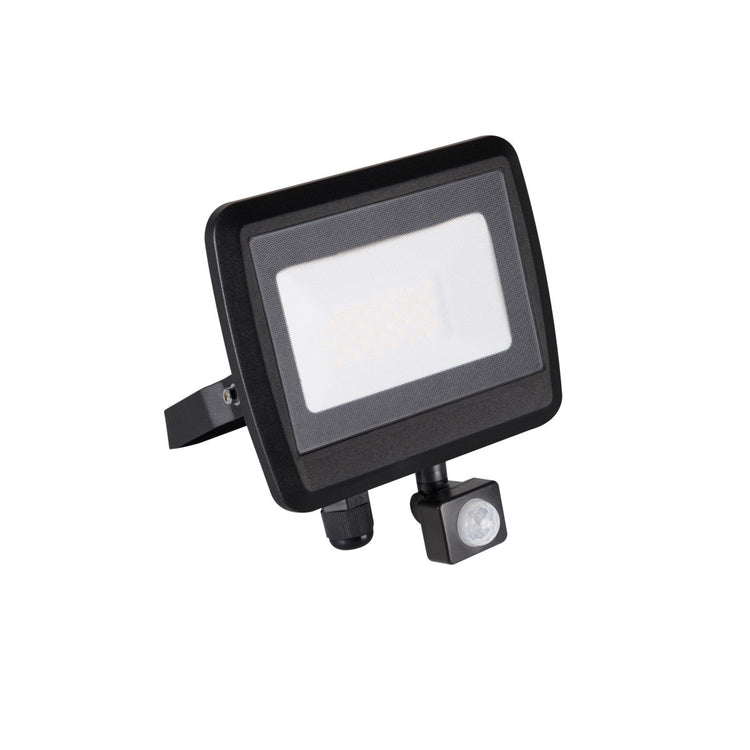

Version with PIR motion sensor
| Kanlux model | ANTEM LED 30W-NW-SE B |
| Ingress protection | IP44 |
| Dimensions W × H × D | 146 × 184 × 63 mm |
| EPREL ID | 507215 |
| Motion sensor | PIR, adjustable sensitivity |
| Sensor range | max. 10 m |
| Sensor detection angle | 120° |
| Sensor timing | 10 s to 10 min |
| Twilight threshold | 2–2000 lx, adjustable |
Note: The ingress protection rating depends on the version: IP65 without sensor, IP44 with PIR sensor.
