LED outdoor wall light ABETE – flexibility and modern design for outdoor use
The ABETE LED outdoor wall light is available in two versions - with motion detector for automated lighting or without motion detector for a constant light source. Both models impress with their high-quality workmanship and energy-efficient LED technology.
- Material and design : Robust housing made of aluminum alloy and plastic in stylish graphite gray (RAL 7016).

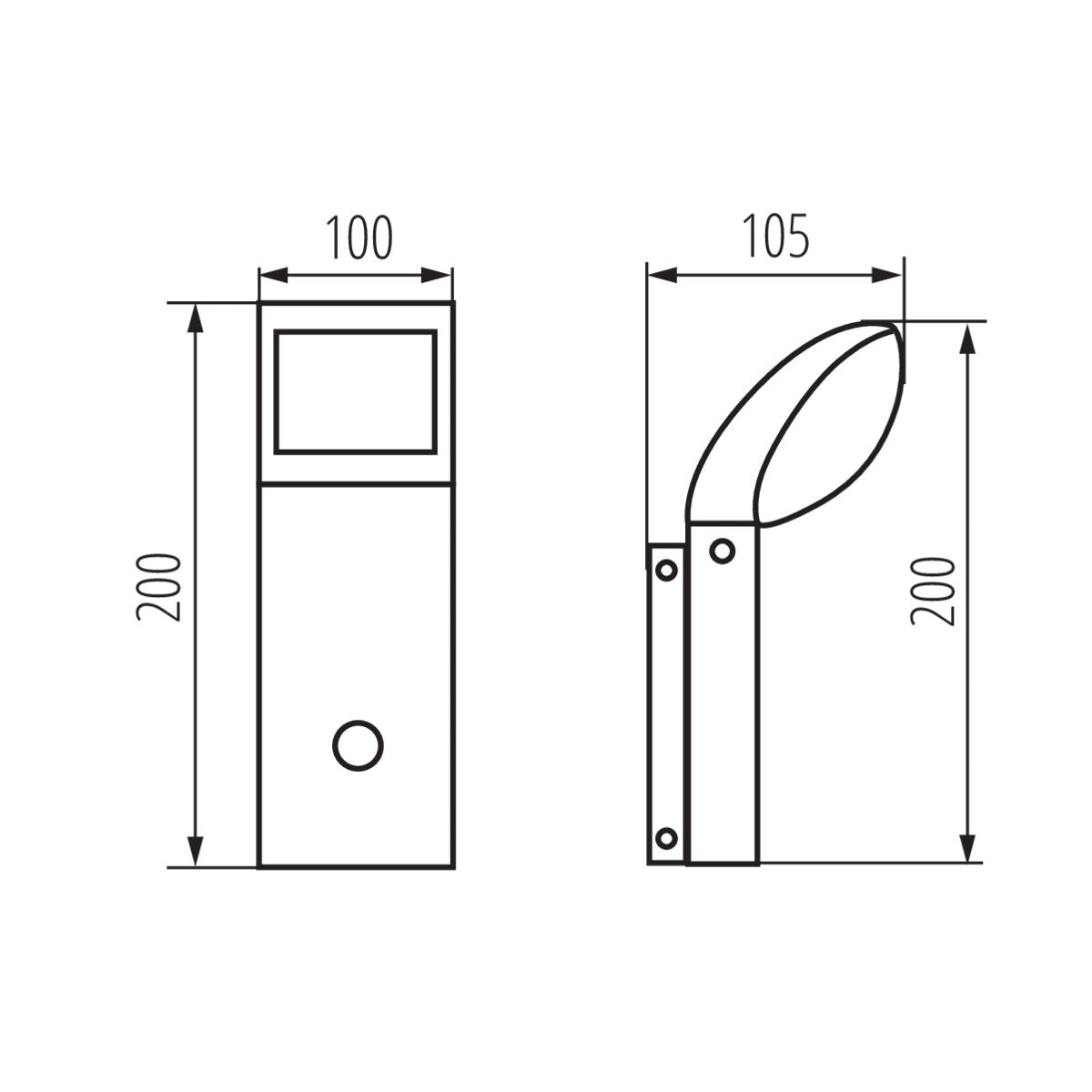

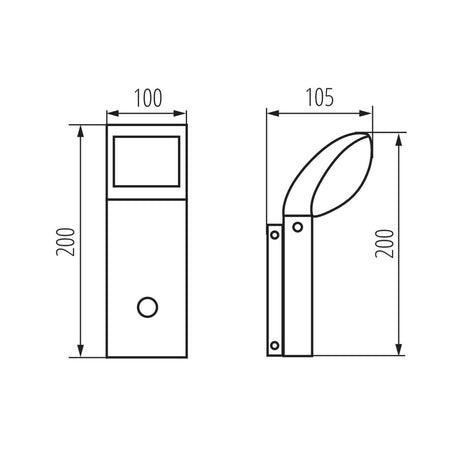

- Dimensions : Compact design with 200 mm height, 105 mm width and 100 mm depth.
-
Energy efficient :
- Power: 7W with integrated LED light source.
- Luminous flux: 540 lm, neutral white light (4000K).
- Long service life: Up to 30,000 hours with a luminous efficacy of 77 lm/W.
- Color rendering index: Ra 80 for pleasant, natural light.
- Weatherproof and durable : Protection class IP44 – dust and splash-proof, ideal for outdoor use.
Variant with motion detector:
-
PIR sensor :
- Detection angle: 110°, range: up to 12 m.
- Adjustable residual light illuminance: 10-2000 lx.
- Switching time adjustable from 10 seconds to 5 minutes.
- Perfect for automatic lighting of driveways, paths or entrance areas.
Variant without motion detector:
- Constant lighting, ideal for areas that need to be permanently illuminated, such as terraces or house facades.
Areas of application: Suitable for house walls, entrances, terraces, walkways or garages.
Experience flexibility, efficiency and modern design with the ABETE LED outdoor wall light – suitable for every requirement.
| product data | |
|---|---|
| Warranty [years] | 2 |
| Color | graphite |
| housing material | aluminum alloy, plastic |
| Dimensions & Weights | |
| Height [mm] | 200 |
| width [mm] | 105 |
| Length [mm] | 100 |
| Weight | 760 g |
| Technical data | |
| Nominal voltage [V] | 220-240 AC |
| Nominal frequency [Hz] | 50 |
| Maximum power [W] | 7 |
| Integrated LED light source | Yes |
| luminous flux of the luminaire [lm] | 540 |
| number of switching cycles | ≥15000 |
| service life [h] | 30,000 |
| color temperature [K] | 4000 |
| color uniformity [SDCM] | 6 |
| color rendering index Ra | 80 |
| diode type | LED SMD |
| Possibility of operation with a dimmer | No |
| color temperature | white |
| protection class against electric shock | I |
| IP class (protection class) | 44 |
| Ambient temperature range [°C] | -20 to +35 |
| installation location | wall mounting |
| connection type | cube with screws |
| range of the sensor [m] | max. 12 |
| angle of action of the sensor [°] | 110 |
| sensor switching time (sec.-min.) | 10-5 |
| sensor type | PIR |
| motion detection | Yes |
| sensitivity setting | Adjustable residual light intensity at which the sensor detects movement [lx]: 10-2000 |
| RAL | 7016 |
| Min. installation distance to the illuminated object | 0.2 m |
| luminous efficacy (lm/W) | 77 |
| Additional Information | |
| Luminous flux of the luminaire Φuse [lm] | 870 |
| Luminous flux of the luminaire Φuse [lm] in sphere (360°) | Yes |
