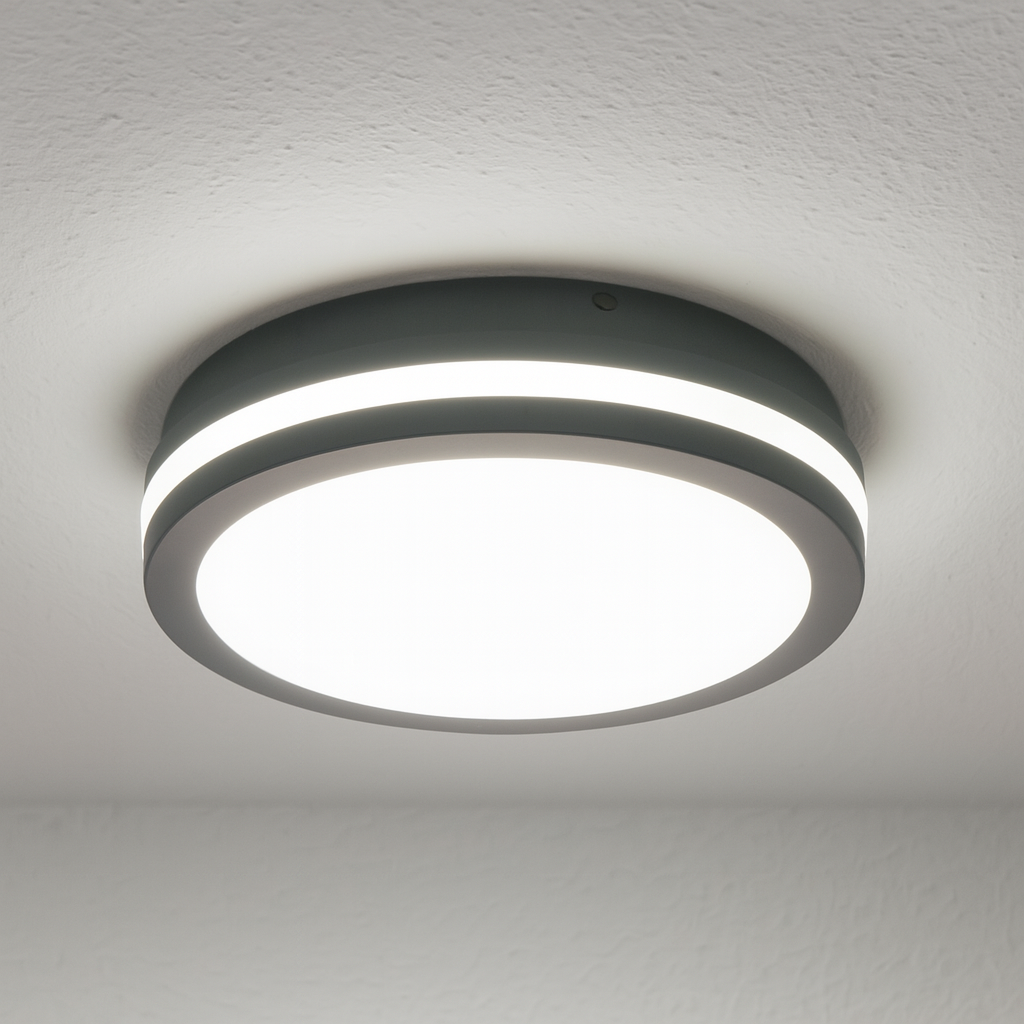

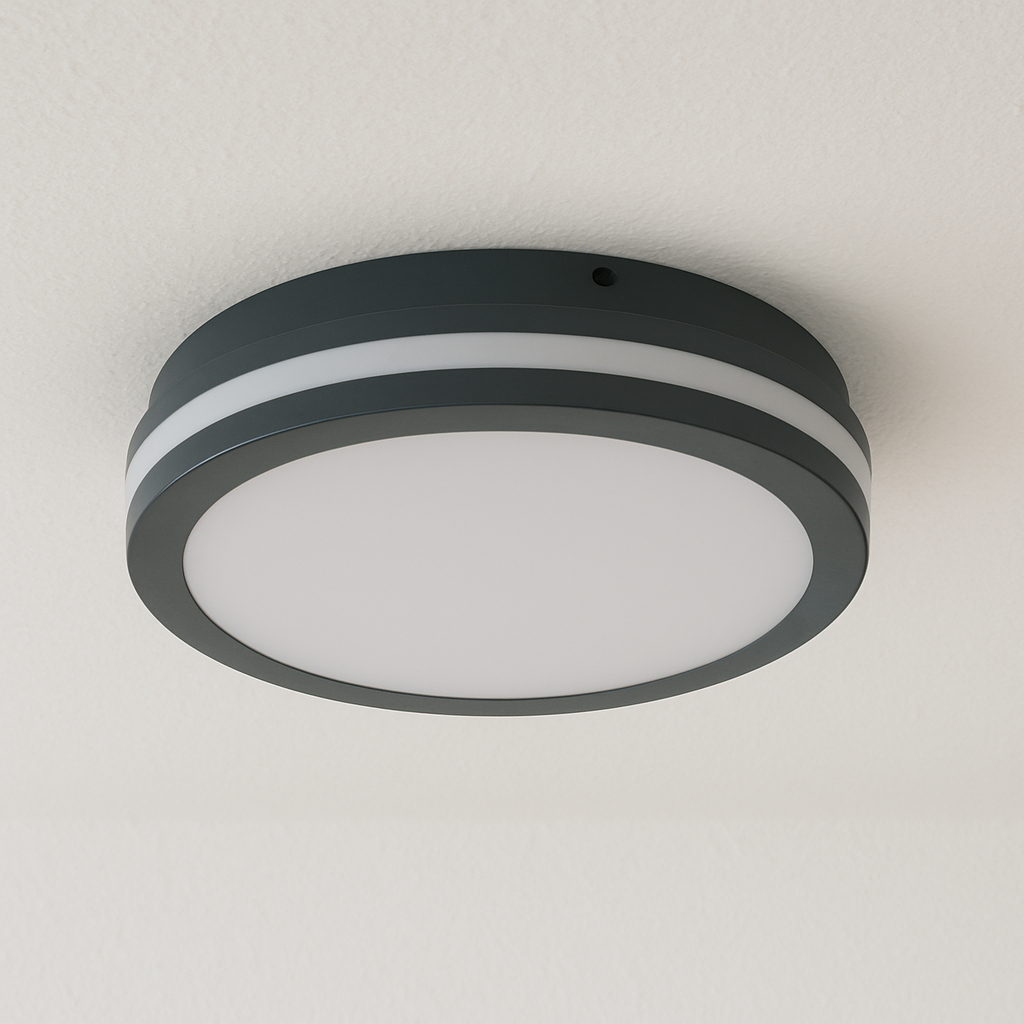

LED Ceiling Light graphite neutral white Ø22cm 18W IP54 230V
€41,04
inkl. MwSt. ·
zzgl. Versand
Schneller Versand
Kauf auf Rechnung möglich
Einfache Rückgabe über unser Retourenportal
Couldn't load pickup availability
Fragen zu diesem Artikel oder Projekt?
Item description:
- The LED luminaire is a series of wall and ceiling lights with or without motion sensors.
- The design of the luminaire is protected, which means that the LED luminaire is only available from .
- High resistance to weather conditions is ensured by IP54.

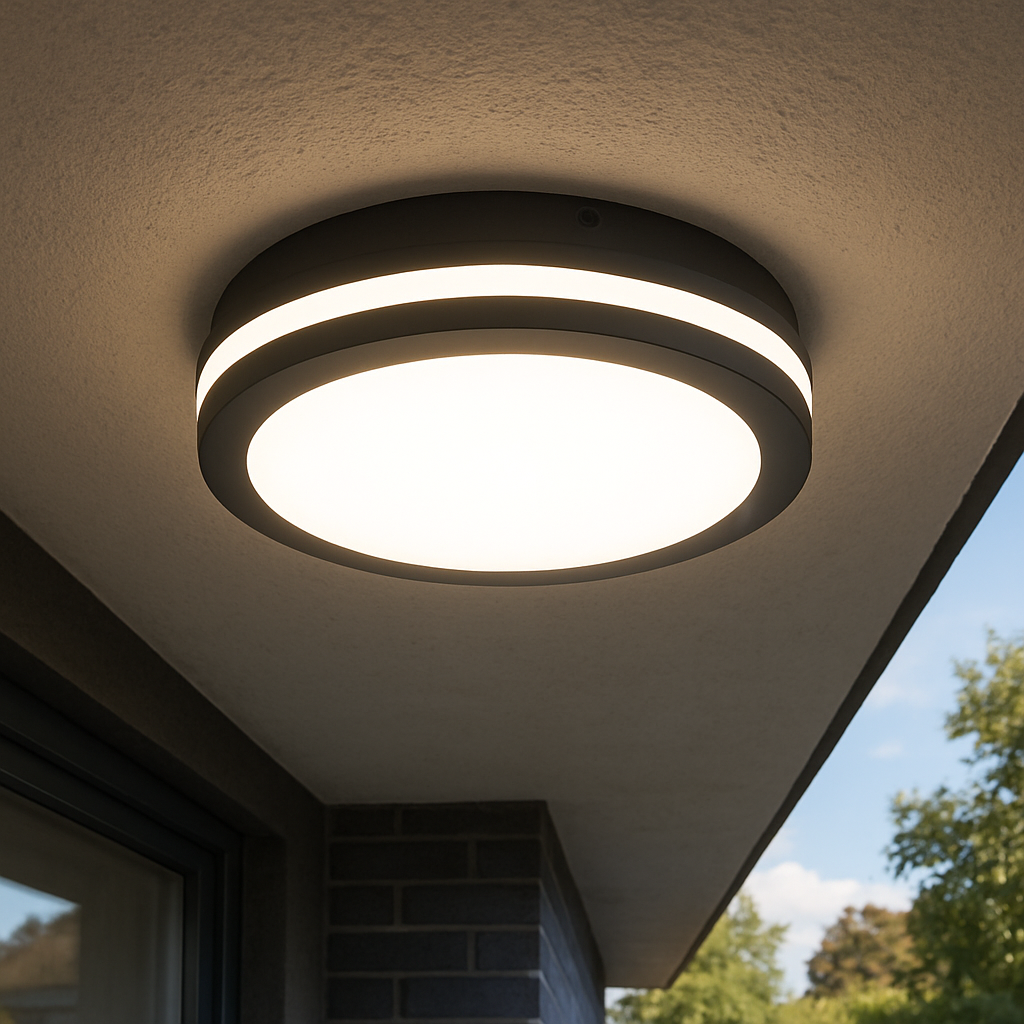

- The LED luminaire can be quickly and easily mounted both indoors (bathroom, kitchen, living room) and outdoors (facade).
Technical data:
| Color : | graphite |
| Installation location: | Wall mounting, ceiling mounting |
| Application area: | indoor and outdoor |
| Min. installation distance to the illuminated object: | 0.5m |
| Possibility of through-wiring luminaires: | yes |
| Possibility of operation with a dimmer: | no |
| Motion detection: | yes |
| Height [mm]: | 55 |
| Diameter [mm]: | 220 |
| Sensitivity setting: | yes |
| Integrated LED light source: | yes |
| Rated voltage [V]: | 220-240 AC |
| Rated frequency [Hz]: | 50 |
| Maximum power [W]: | 18 |
| Protection class against electric shock: | II |
| Cover material: | Plastic |
| Diode type: | LED SMD |
| Luminous flux [lm]: | 1400 |
| Color temperature: | neutral white |
| Correlated color temperature [K]: | 4000 |
| Color consistency in MacAdam ellipses: | ≤6 |
| Color rendering index: | 80 |
| Lifespan [h]: | 20000 |
| Number of switching cycles: | ≥20000 |
| Beam angle [°]: | 110 |
| Luminous efficacy (lm/W): | 78 |
| Ambient temperature range [°C]: | -15÷35 |
| Housing material: | Plastic |
| Sensor type: | Microwave |
| Connection type: | Self-clamping cube |
| Cross-sectional area of the cables used [mm²]: | 0.5÷1.5 |
| Sensor switching time (sec.-min.): | 5-5 |
| Lamp warm-up time [s]: | ≤1 |
| Lamp ignition time [s]: | ≤0.5 |
| Sensor operating frequency [MHz]: | 5800 |
| Adjustable residual light illuminance at which the sensor detects motion [lx].: | 2/10/50/off |
| IP class (protection class): | 54 |
| Sensor range [m]: | max 4.5 |
| Weight [kg]: | 0.592 |
