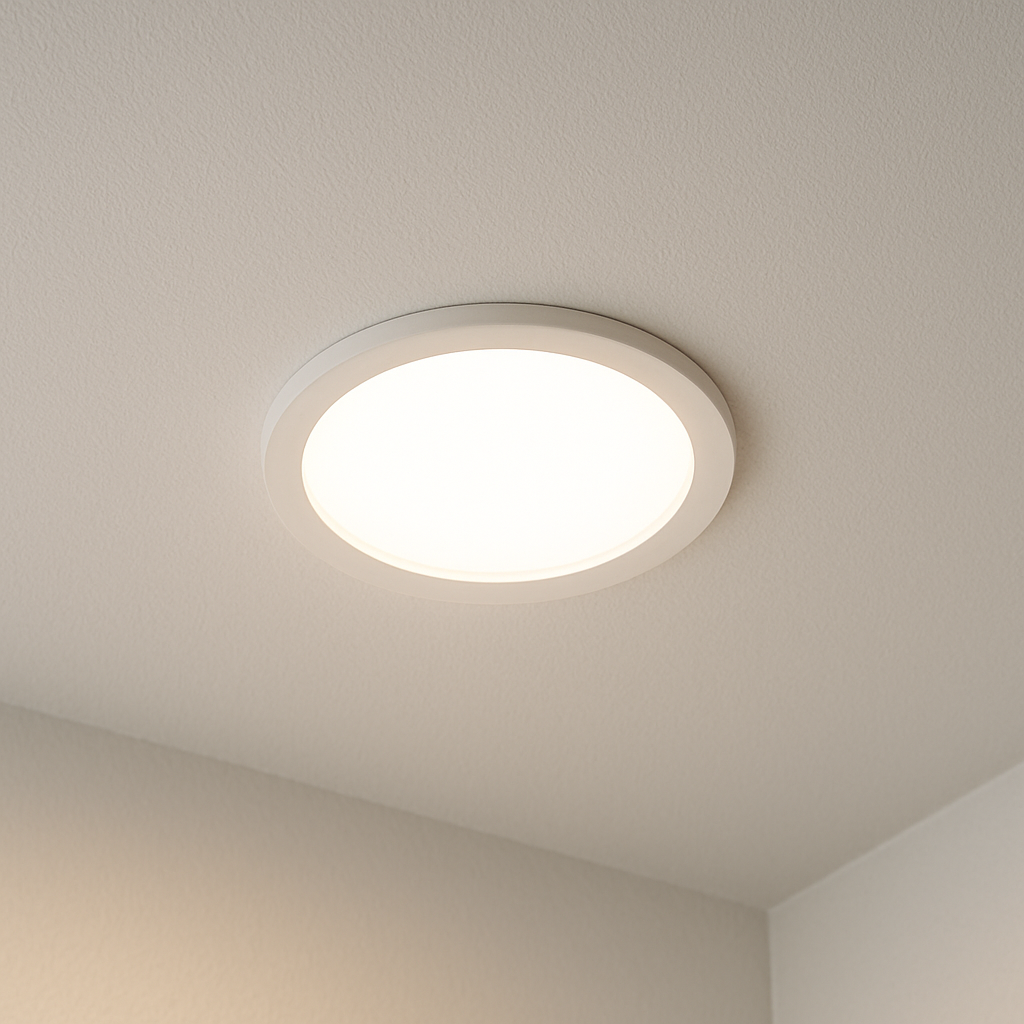

LED Downlight Ingrid 12W Dimmable 230V
for installation in ceiling openings of 60-140mm
Lieferung innerhalb von 1-3 days Tagen
2 Jahre Gewährleistung
Geld-zurück-Garantie & Käuferschutz
Fragen Sie einen Experten
Projekt geplant?
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen
PRODUCT FEATURES
- white downlight with adjustable mounting springs
- for installation in ceiling openings of 60-140mm
- adjustable light color 3000K/4000K/5000K
- with integrated LED converter
- Leading edge and trailing edge dimmable (TRIAC)
- Incl. 30cm cable with wire end ferrules
| Color: | white |
| Rotatable: | No |
| Swivelling: | No |
| Dimmable: | yes (phase and phase section) |
| Lamp material: | Plastic, metal |
| Protection class: | II |
| Protection class: | IP20 |
| Borehole: | 60-140mm |
| Outer diameter: | 165mm |
| Installation depth: | 35mm |
| Installation height: | 16mm |
| TECHNICAL DATA | |
|---|---|
| Rated capacity: | 12W |
| Nominal voltage: | 220-240V AC |
| Light color: | Adjustable on the lamp |
| Color temperature: | 3000-4000-5000K |
| Color code: | WW-NW-CW |
| Luminous flux: | 900 - 950lm |
| Color rendering index: | > 80Ra |
| Beam angle: | 120° |
| Lifespan: | approx. 20000h |
| Switching cycles: | 15000x |
| Start-up time in seconds: | < 0.5s |
| Energy efficiency class: | F |
| Weighted energy consumption: | 12kWh/1,000h |
Dimmer list
| brand | Model number | Performance |
|---|---|---|
| ROLUX | SMART ONE 89150909999 | 1-100W |
| BUSH | BUSCH 6523 U-102 420W | 2-100W |
| GIRA | 245000 | 3-60W |
| GIRA | 030000 | 3-40W |
| MERTEN | MEG5134 | 4-200W |
| HEAD | 842800008 | 3-35W |
| ELTAKO | EUD61NPN | 4-100W |
