LED damp room Hjo luminaire grey 157cm, G13 T8 IP65 230V
Schneller Versand
Kauf auf Rechnung möglich
Einfache Rückgabe über unser Retourenportal
Couldn't load pickup availability
Fragen zu diesem Artikel oder Projekt?

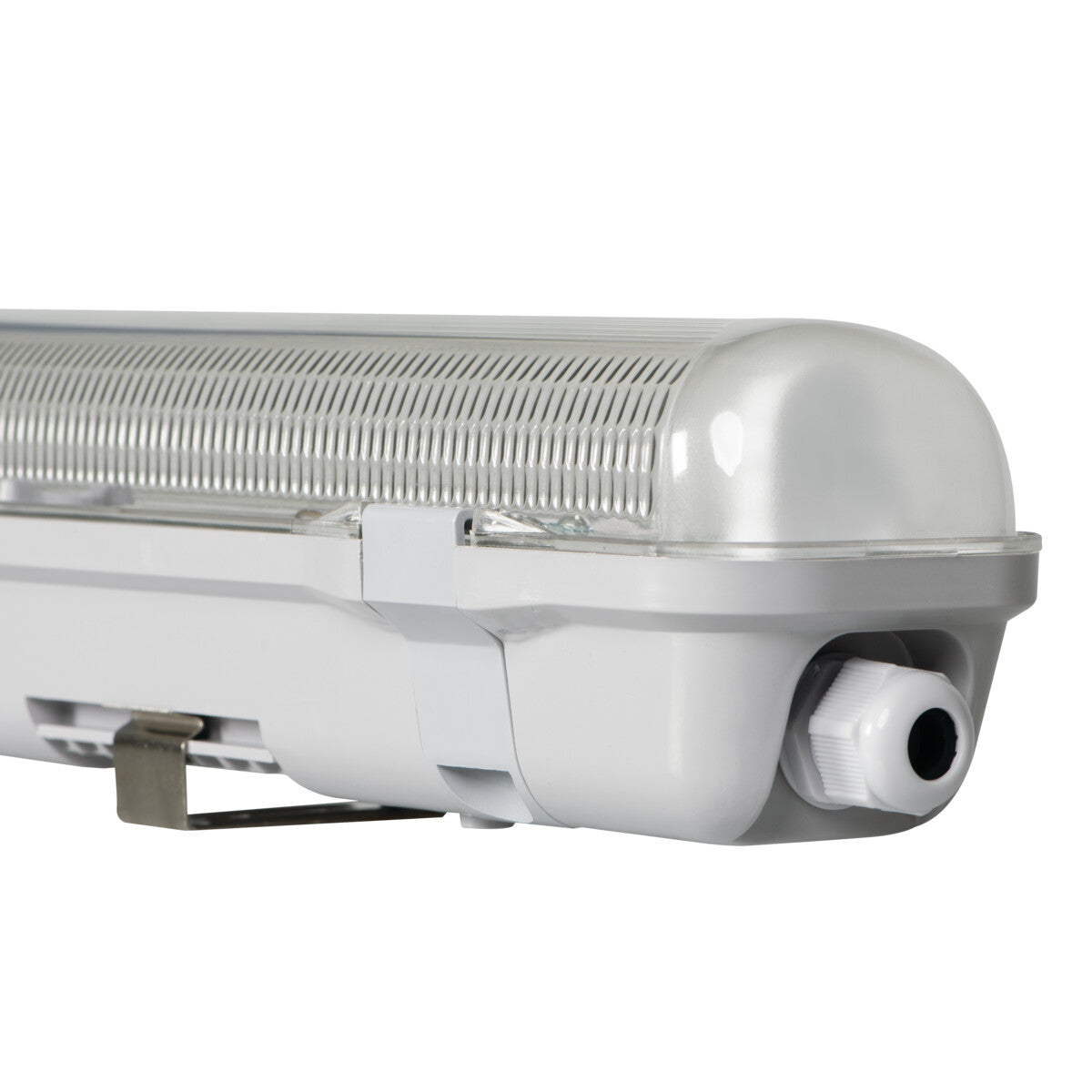

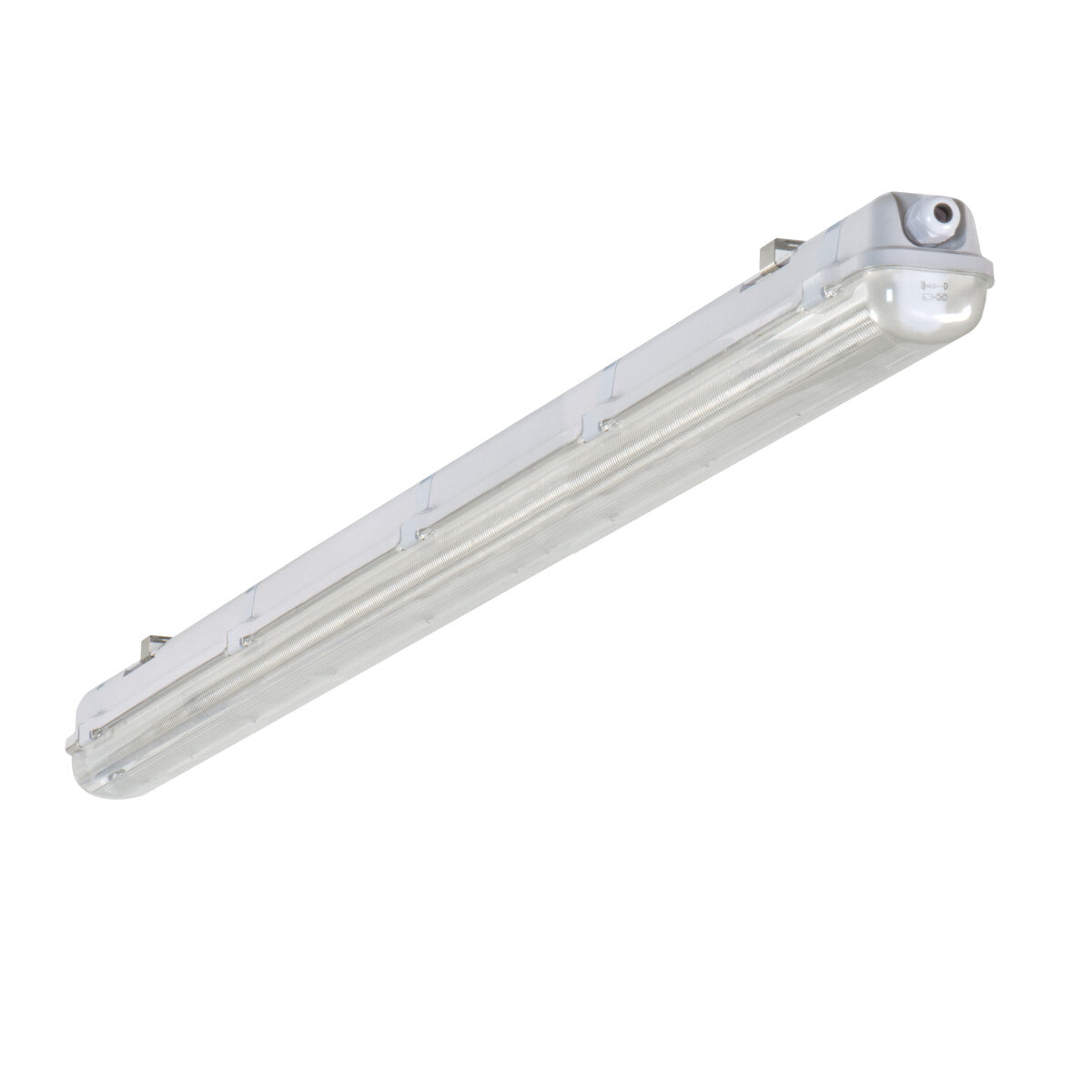

MAH PLUS 4LED are LED luminaires that replace the well-known damp-proof luminaires. Their main advantage is the fact that T8 LED fluorescent tubes with a length of 1200mm or 1500mm can be used. It is an excellent solution for industrial applications.
- MAH PLUS 4LED are LED luminaires that replace the well-known damp-proof luminaires.
- It is an excellent solution for industrial applications.
- Light source is not included in the delivery.
Technical data:
| Colour: |
grey
|
| Housing material | Plastic / PC |
| Material of the bracket | Plastic |
| Handle material | Metal |
| Area of application |
indoors and outdoors
|

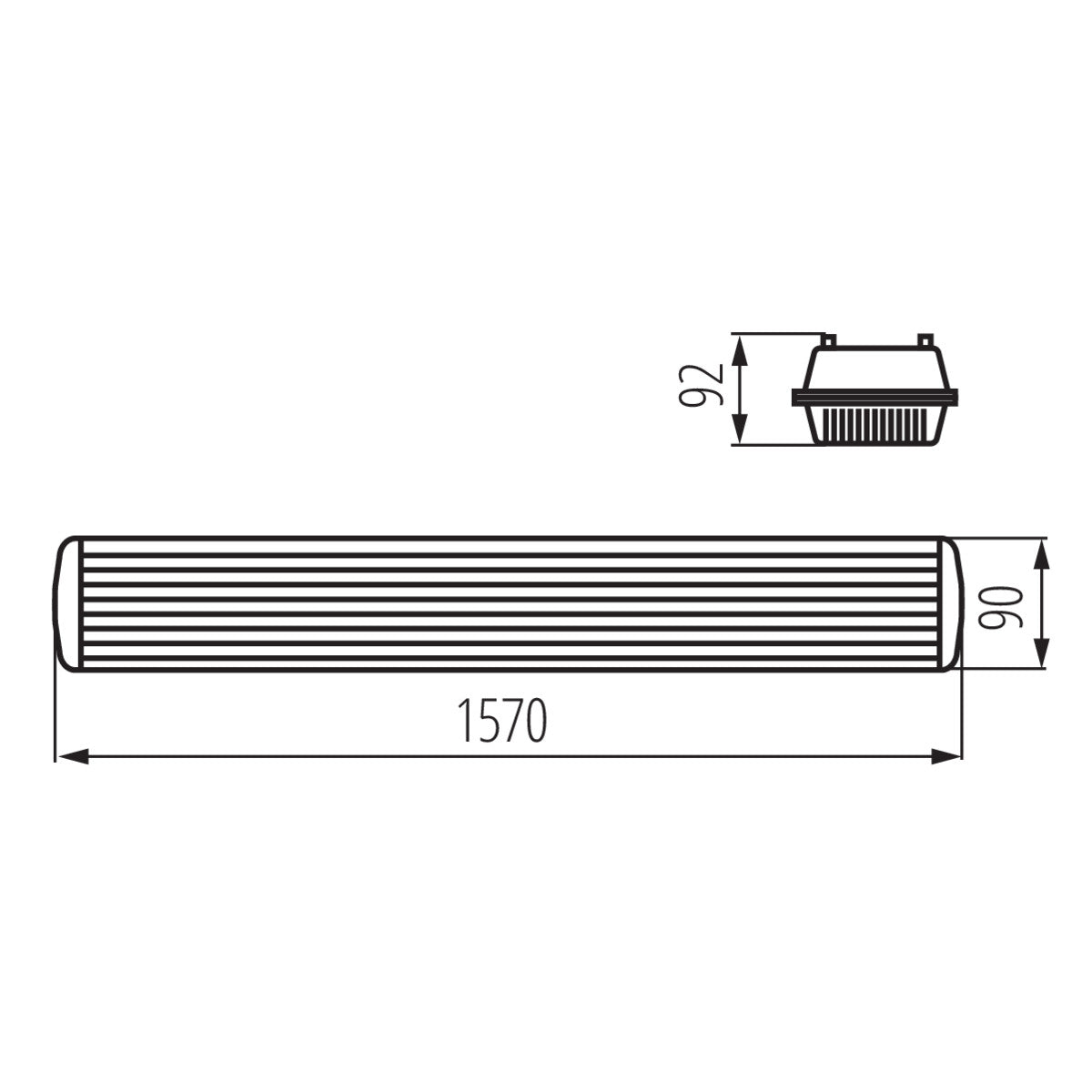

| Height [mm] |
92
|
| Width [mm] | 90 |
| Length [mm] | 1570 |
| Weight |
1480g |
| Rated voltage [V] |
220-240 AC
|
| Rated frequency [Hz] |
50 / 60
|
| Maximum power [W] |
max 58
|
| Light source |
T8 LED
|
| Base | G13 |
| Protection class against electric shock | I |
| IP class (degree of protection) | 65 |
| Ambient temperature range [°C] |
5÷25
|
| Installation location | Ceiling mounting |
| Connection type |
Screwed cube
|
| Cable cross-section [mm2] |
1÷2.5
|
| Possibility of through-wiring luminaires | yes |
| Power supply for T8 LED retrofit tubes | single-sided |
| The luminaire is designed for lamps/light sources of the following energy efficiency classes |
A++,A+,A
|
| Min. installation distance to the illuminated object | 0.5m |
| Replaceable lamp/light source | yes |
| Light source in set | no |
Hinweis: Produktnamen sind Modellbezeichnungen; Hersteller oder Marke gelten nur als zugesichert, wenn diese ausdrücklich genannt werden.
