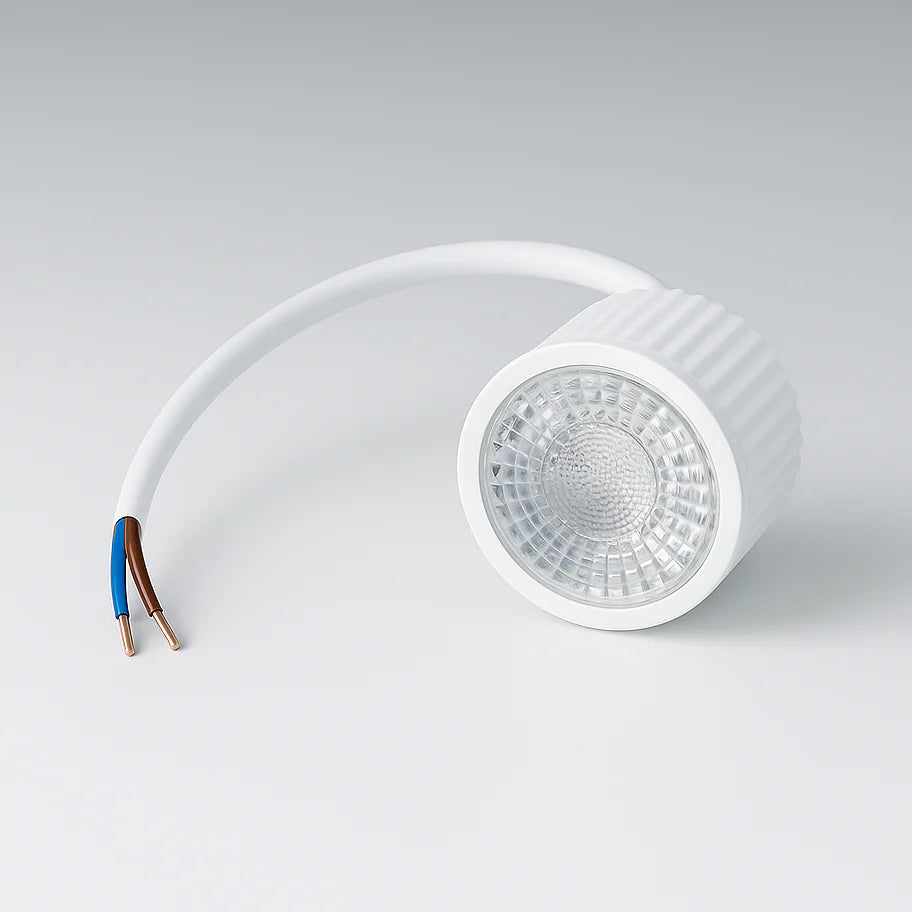

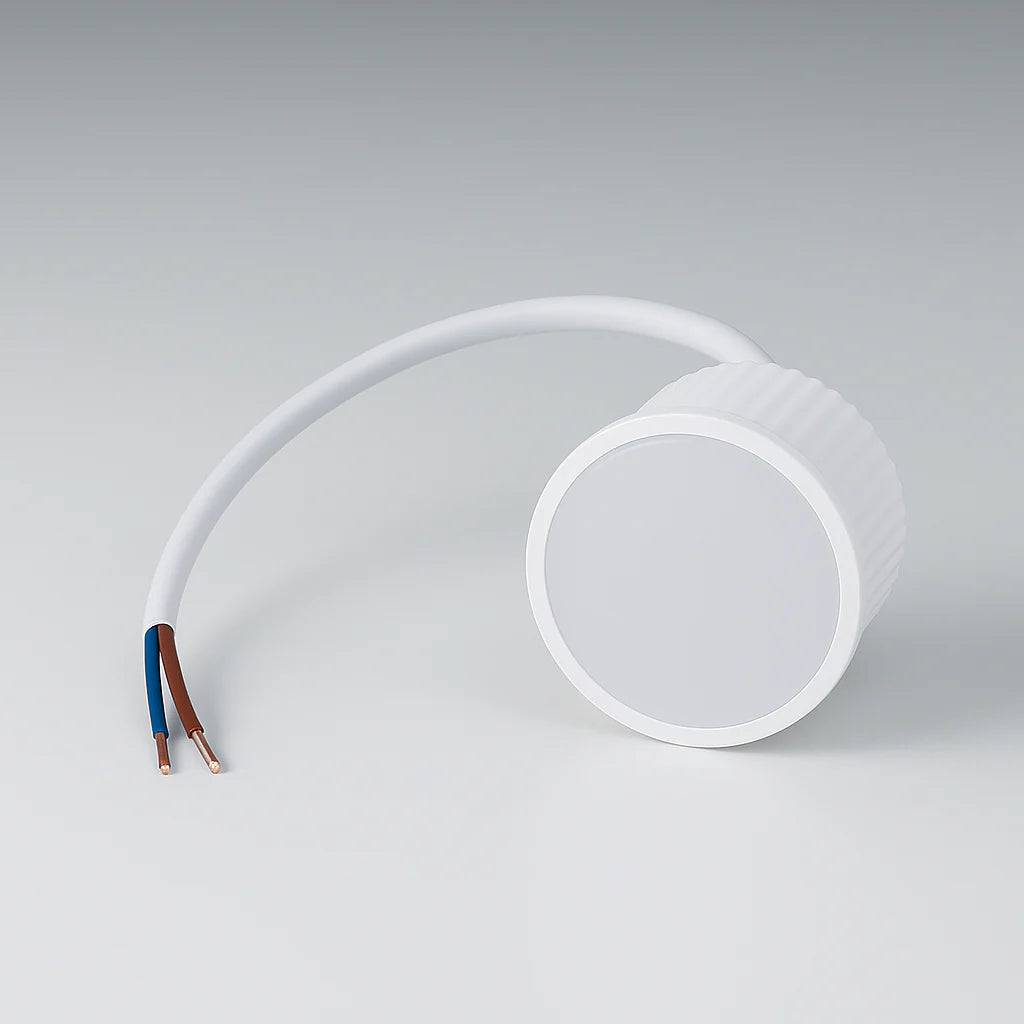

LED Module 5W CCT (warm white, neutral white, cool white) Extra Flat
This particularly flat LED light source, with an installation depth of only 26 mm, is ideal for long-term use in offices, living spaces, and suspended ceilings with shallow installation depths.
Thanks to the integrated CCT function, the light color can be flexibly adjusted: warm white, neutral white, or cool white. This allows the light to be adapted to the room, application, or personal preference.
The light source is suitable for direct operation on 230V, is immediately bright, and is not dimmable.
Variants
- 60° beam angle: focused light, ideal for accent lighting or directed downward light.
- 110° beam angle: wide light distribution, ideal for more uniform room illumination.
Differences between variants
| Variant | Lumen | Beam Angle |
|---|---|---|
| 60° | 436 lm at 3000K 503 lm at 4000K 465 lm at 6500K |
60° |
| 110° | 445 lm at 3000K 522 lm at 4000K 502 lm at 6500K |
110° |
Common Technical Data
- Power: 4.98 W
- Light Color: CCT selectable warm white / neutral white / cool white
- Operating Voltage: 230V~ AC / 50Hz
- Turn-on Time: 100% brightness in 0.1 sec.
- Switching Cycles: 20,000x
- Lifespan: 20,000 hrs.
- Power Factor: > 0.70
- Color Rendering: Ra > 80
- Mercury: 0.0 mg
- Dimensions: Ø 50 x 26 mm
- Consumption: 5 kWh / 1000 h
- Dimmable: No
Which variant is right for you?
The variant with a 110° beam angle is the better choice when broad and uniform illumination is desired – for example, in a living room, hallway, or office.
The variant with a 60° beam angle is more suitable for targeted, more directional light, such as when specific areas or surfaces are to be emphasized.
