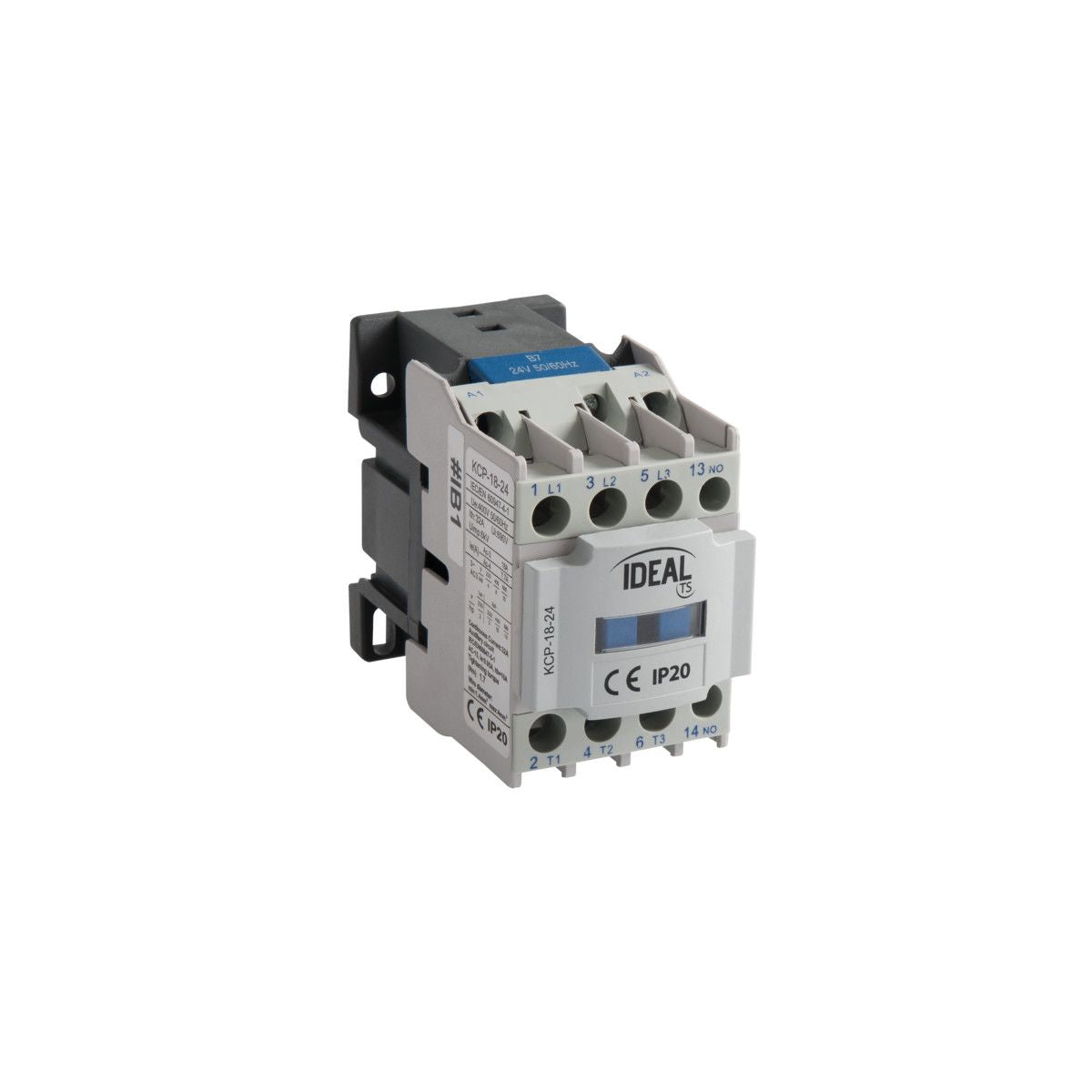

Power protection, white, 18A / IP20 / 24V
€15,92
inkl. MwSt. ·
zzgl. Versand
Kostenloser Versand ab 100 €
Geld-zurück-Garantie & Käuferschutz
Einfache Rückgabe – kostenlos ab 60 €
Beratung für Ihr Projekt?
Gewerbekunde? B2B-Zugang beantragen
Für Elektriker, Innenausbauer, Hausverwaltungen und gewerbliche Kunden bieten wir passende B2B-Konditionen.
B2B-Zugang beantragen
Technical data:
| Color : | white |
| Weight : | 370g |
| Coil supply voltage [V] : | 24 AC |
| Nominal frequency [Hz] : | 50/60 |
| User category : | AC-3 |
| Rated switching current [A] : | 18 |
| Contractual heat flow Ith [A] : | 32 |
| Rated operating current 380V - In AC-3 : | 18A |
| Rated operating current 380V - In AC-4 : | 7.7A |
| Rated operating current 660V - In AC-3 : | 12A |
| Rated operating current 660V - In AC-4 : | 3.8A |
| Rated operating current 440 V - In AC-1 : | 32A |
| Rated operating power AC-3 220-240V : | 4kW |
| Rated operating power AC-3 380-400V : | 7.5kW |
| Rated operating power AC-3 415V : | 9kW |
| Rated operating power AC-3 440V : | 9kW |
| Rated operating power AC-3 660-690V : | 10kW |
| Main contacts : | 3 |
| Auxiliary contacts : | 1 |
| Nominal impulse voltage Uimp [V] : | 6000 |
| Nominal insulation voltage Ui [V] : | 690 |
| Connection type : | Connection cube |
| IP class (protection type) : | 20 |
| Impedance per pole [mOhm] : | 2.5 |
| Switching frequency electrical AC-3 [number/h] : | 1200 |
| Switching frequency electrical AC-4 [number/h] : | 300 |
| Mechanical switching frequency [number/h] : | 3600 |
| Tightening force [Nm] : | 1.7Nm |
| Nominal switching voltage Ue [V] : | 400 |
| Installation location : | On the rail TH35 |
Hinweis: Produktnamen sind Modellbezeichnungen; Hersteller oder Marke gelten nur als zugesichert, wenn diese ausdrücklich genannt werden.
