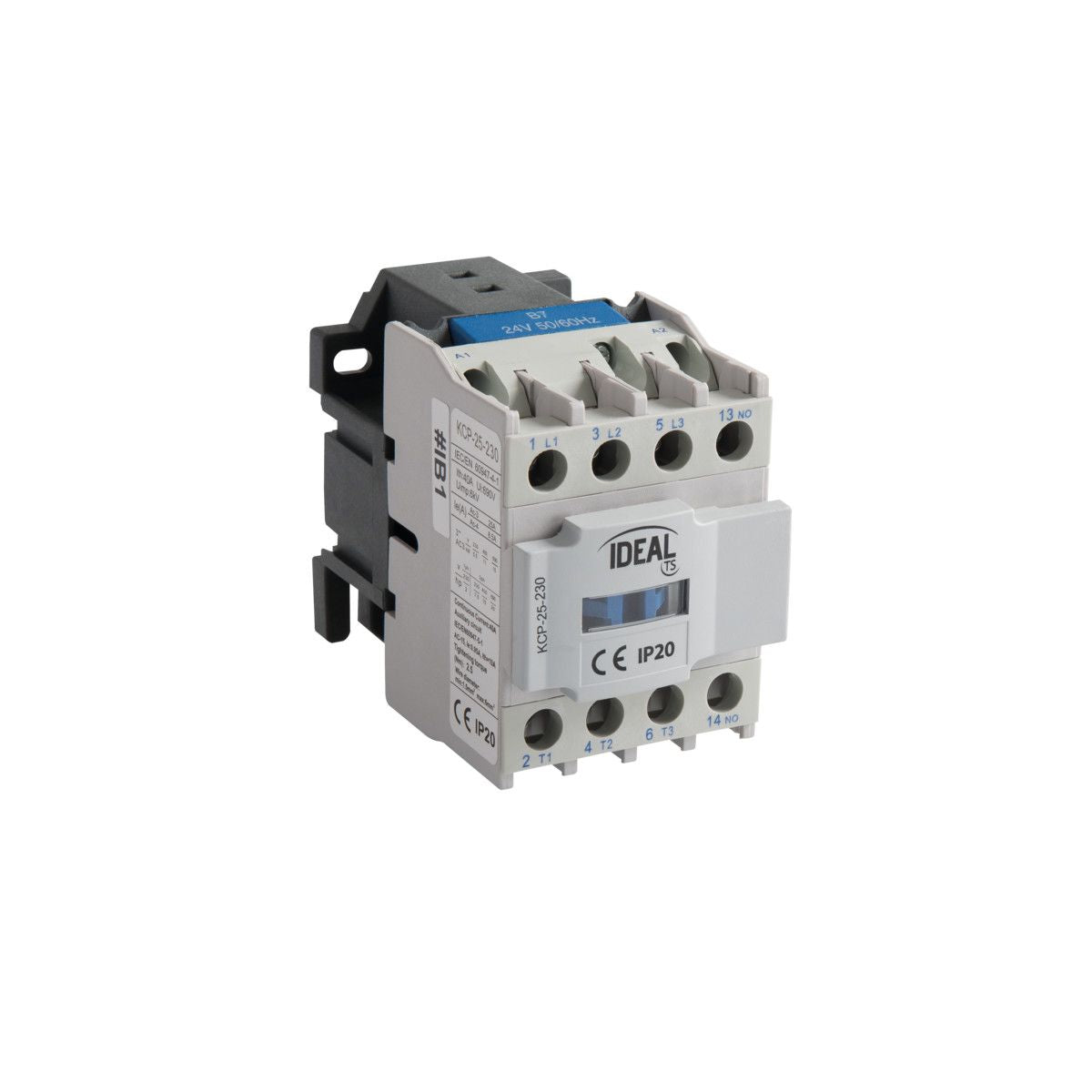

Power contactor coil 25A / IP20 / 230VAC


Price:
Sale price€15,24

Tax included Shipping calculated at checkout

Stock:
In stock, delivery time: 2-4 days days

  • Delivery within 2-4 days working days
  • Return: 30-day free*

Mitarbeiter 1 Mitarbeiter 2
Fragen Sie unser Expertenteam
Unser Team hilft gern

Description

Technical data:

User category: AC-3
Color: white
Installation location: On the rail TH35
Nominal frequency [Hz]: 50 / 60
Connection type: Connection cube
Switching frequency electrical AC-3 [number/h]: 1200
Switching frequency electrical AC-4 [number/h]: 300
Mechanical switching frequency [number/h]: 3600
Impedance per pole [mΩ]: 2
Rated operating power AC-3 220-240V: 5.5kW
Rated operating power AC-3 380-400V: 11kW
Rated operating power AC-3 415V: 11kW
Rated operating power AC-3 440V: 11kW
Rated operating power AC-3 660-690V: 15kW
Coil supply voltage [V]: 230 AC
Nominal switching voltage [V]: 400
Contractual heat flow Ith [A]: 40
Tightening force: 2.5Nm
IP class (protection class): 20
Main contacts: 3
Auxiliary contacts: 1
Nominal insulation voltage [V]: 690
Nominal impulse voltage [V]: 6000
Rated switching current [A]: 25
Rated operating current 380V - In AC-3: 25A
Rated operating current 380V - In AC-4: 8.5A
Rated operating current 440 V - In AC-1: 40A
Rated operating current 660V - In AC-3: 18A
Rated operating current 660V - In AC-4: 4.4A
Electrical life (x10³) AC-3: 1000
Electrical life (x10³) AC-4: 200
Mechanical life (x10⁶): 10Nm
Weight [g]: 548
