LED Hexagon Ceiling Light HEXAGRID

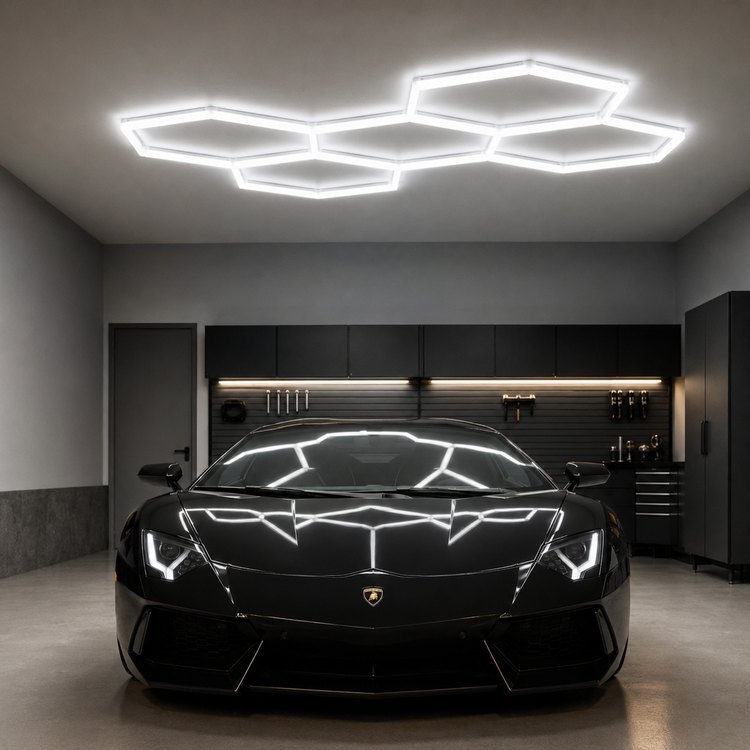

The HEXAGRID LED ceiling light is a modular lighting system for workshops, detailing studios, showrooms, gyms and other large commercial interiors. The geometric hexagon design provides a modern look and broad, even illumination.

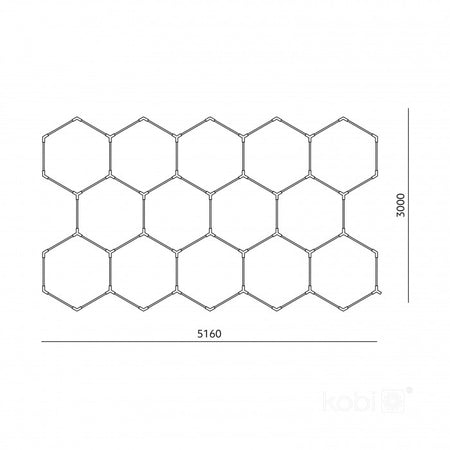

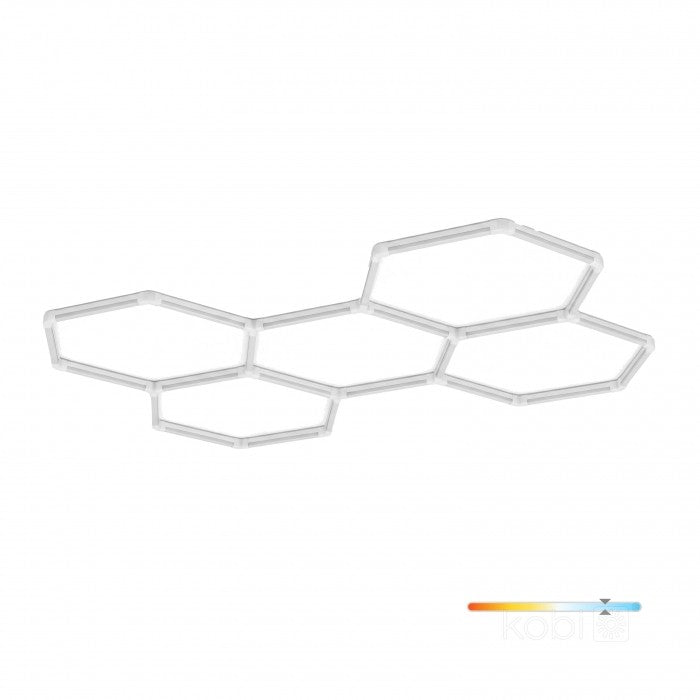

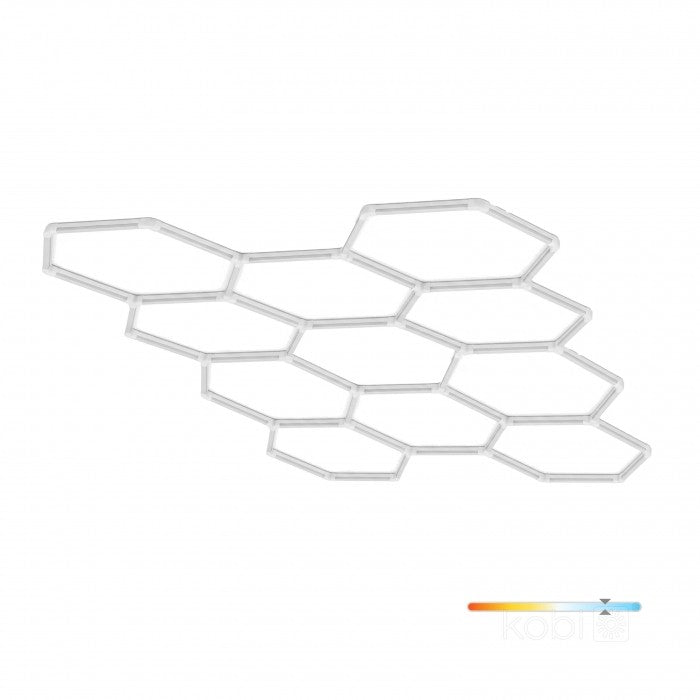

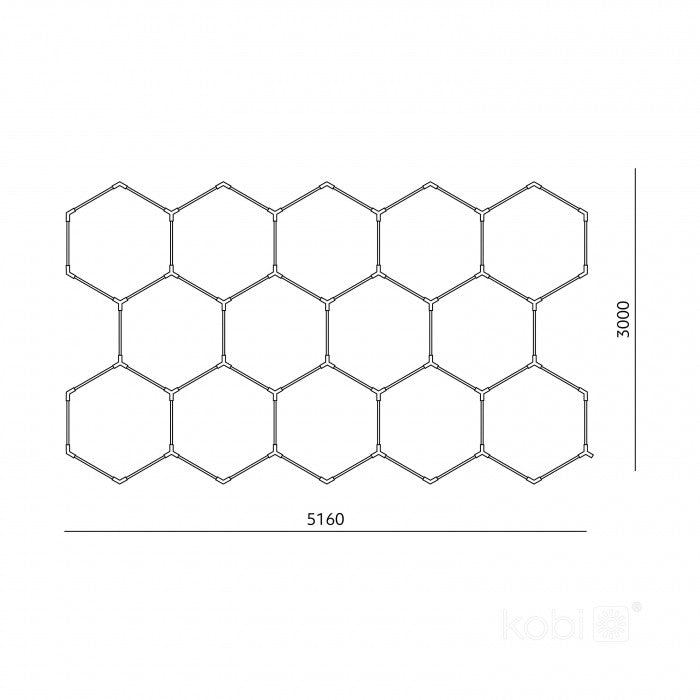

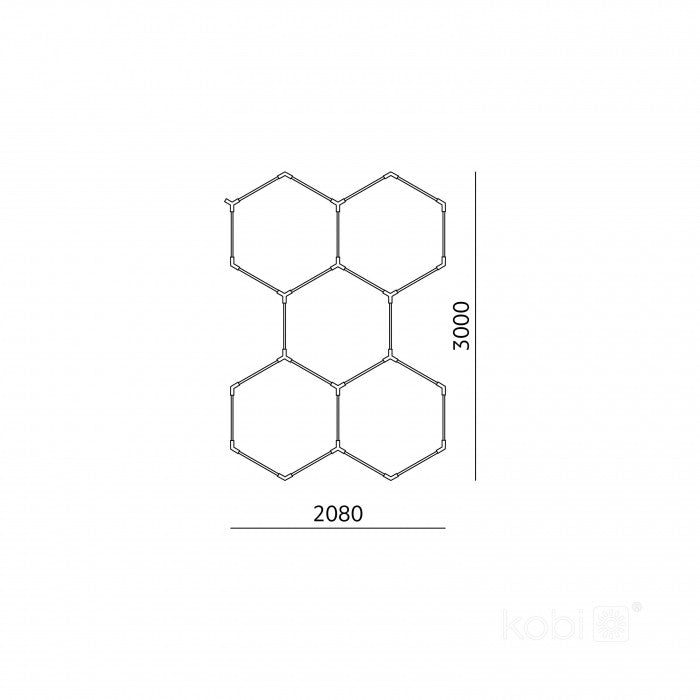

The luminaire is available in sizes 208 × 300 cm and 300 × 516 cm and in light colors 4000 K neutral white and 6500 K cool white.
Product advantages
- Modular LED system in modern hexagon design
- High luminous flux of up to 51,300 lumens
- Wide beam angle of 160°
- Optional 4000 K neutral white or 6500 K cool white
- Complete set including connectors and mounting material
- Lightweight and robust polycarbonate housing
- For dry indoor use, protection class IP20
Variants in comparison
| Technical specification | 208 × 300 cm | 300 × 516 cm |
|---|---|---|
| Power | 216 W | 513 W |
| Luminous flux | 21,600 lm | 51,300 lm |
| Current consumption | 1.8 A | 4.3 A |
| Light color | 4000 K or 6500 K | 4000 K or 6500 K |
Scope of delivery per size
| Component | 208 × 300 cm | 300 × 516 cm |
|---|---|---|

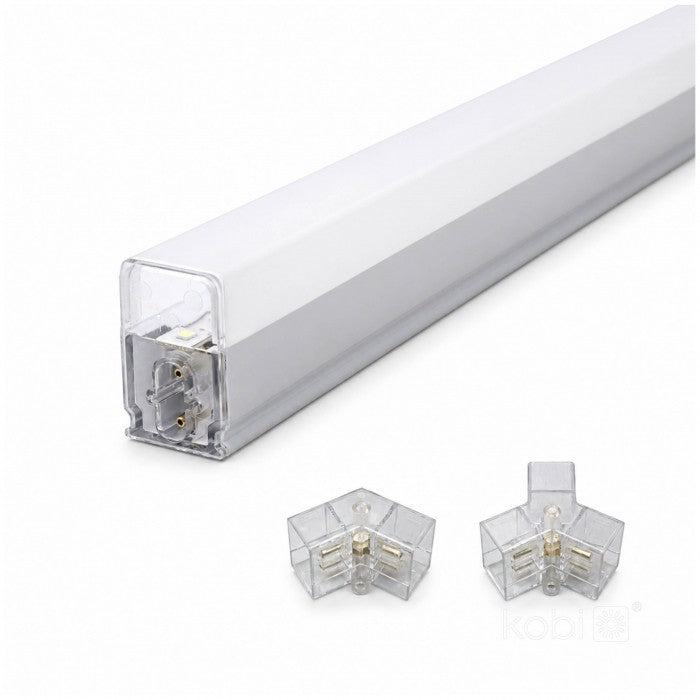

| LED profiles | 24 pieces of 44 cm | 57 pieces of 44 cm plus 1 spare profile |

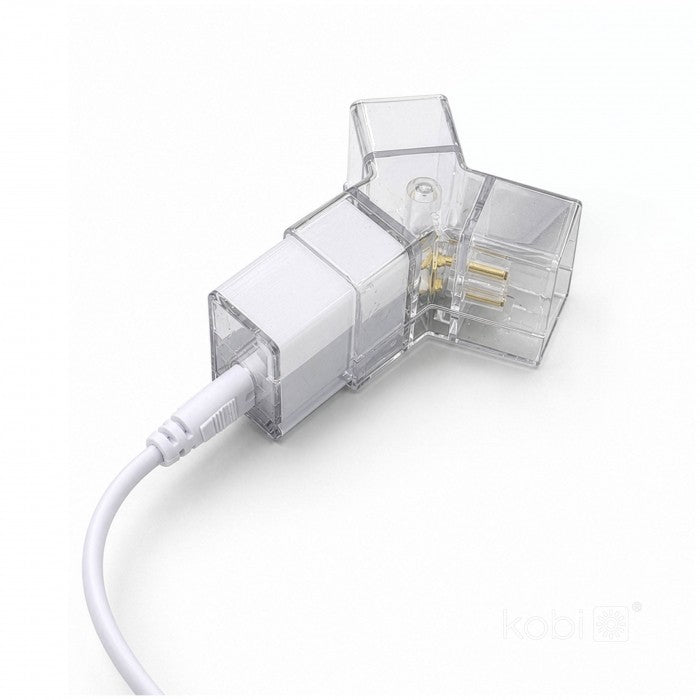

| Triple connectors | 9 pieces | 27 pieces |
| Double connectors | 11 pieces | 17 pieces |
| Connection cables | 2 pieces | 2 pieces |
| Cable ties | 30 pieces | 60 pieces |
| Mounting brackets | 25 pieces | 50 pieces |
| Mounting screws | 25 pieces | 50 pieces |
| Cable nuts | 2 pieces | 2 pieces |
Technical data
| Product series | HEXAGRID |
| Voltage | 230 V |
| Beam angle | 160° |
| Color rendering index | Ra ≥ 70 |
| Power factor | ≥ 0.93 |
| Dimmable | No |
| Protection class | IP20 |
| Safety class | II |
| Energy efficiency class | F |
| Material | Polycarbonate |
| Color | White |
| Mounting type | Ceiling mounting |
| Lifetime | up to 20,000 hours |
| Switching cycles | 15,000 |
| Operating temperature | −15 °C to +40 °C |
| Warranty | 2 years |
Areas of application

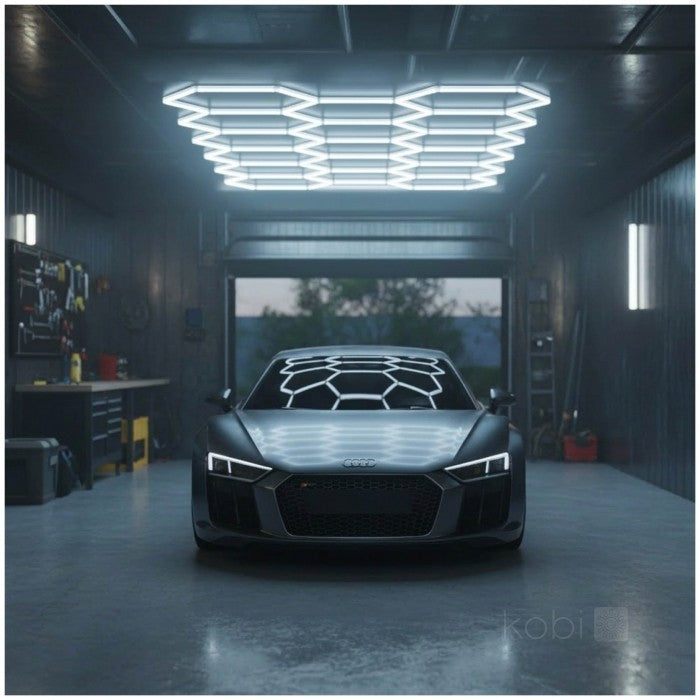

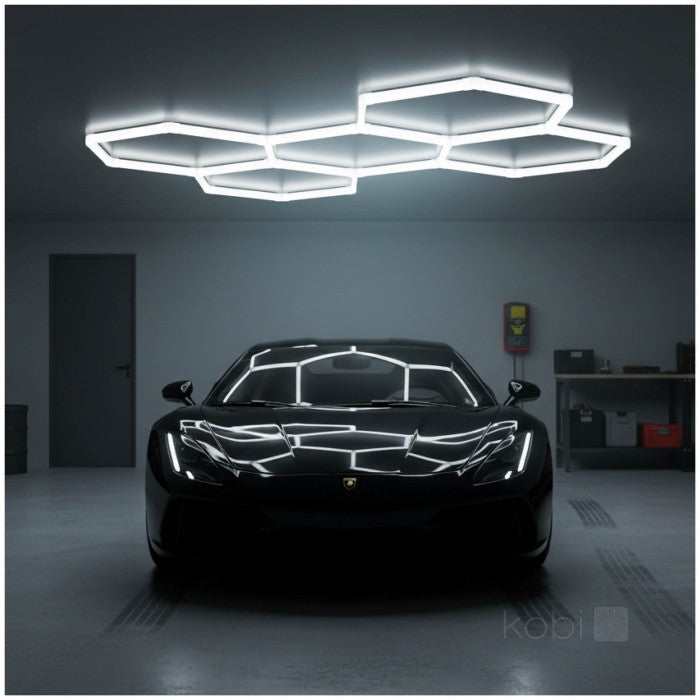

Suitable for car workshops, vehicle detailing, detailing studios, showrooms, salesrooms, gyms, photo and film studios, as well as hair and beauty salons.
Installation note: The electrical connection and replacement of the integrated LED light source may only be carried out by qualified personnel. The luminaire is intended exclusively for dry indoor use.
