Discover our new technical product portfolio: SLVtec. With the latest LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From damp-proof luminaires to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. This includes the PANEL V luminaire, which is available as a surface-mounted and recessed version as well as a DALI version. The light color (3000K/4000K) and light intensity (4100lm/4350lm) can be easily changed via dip switch. Thanks to the high light output of up to 120 lm/W and the UGR<19, the luminaires are particularly suitable for office spaces where glare-free and homogeneous lighting is important. The external driver also enables easy installation. Choose SLVtec today.
| TECHNICAL DATA | |
|---|---|
| Color | white |
| Complementary color | white |
| material | steel |
| Materials 2 | aluminum |
| Primary nominal voltage | 220-240V ~50/60Hz |
| Secondary in (mA/V) luminaire | 900mA |
| Current in A | 0.9 |
| Wattage [W] | 34 |
| Weighted wattage | 34 |
| EEC | D |
| Luminous flux in luminaire [lm] | 4000 / 4200 |
| Luminous flux [lm] | 4000 / 4200 |
| Luminous flux per watt | 118 |
| Light color temperature [k] | 3000/4000 |
| CRI | 80 |
| Beam angle in degrees | 85 |
| UGR | 19 |
| Lifespan in h | 50000 |
| IP Class | IP40 / IP54 |
| Protection class[I, II, III] | II |

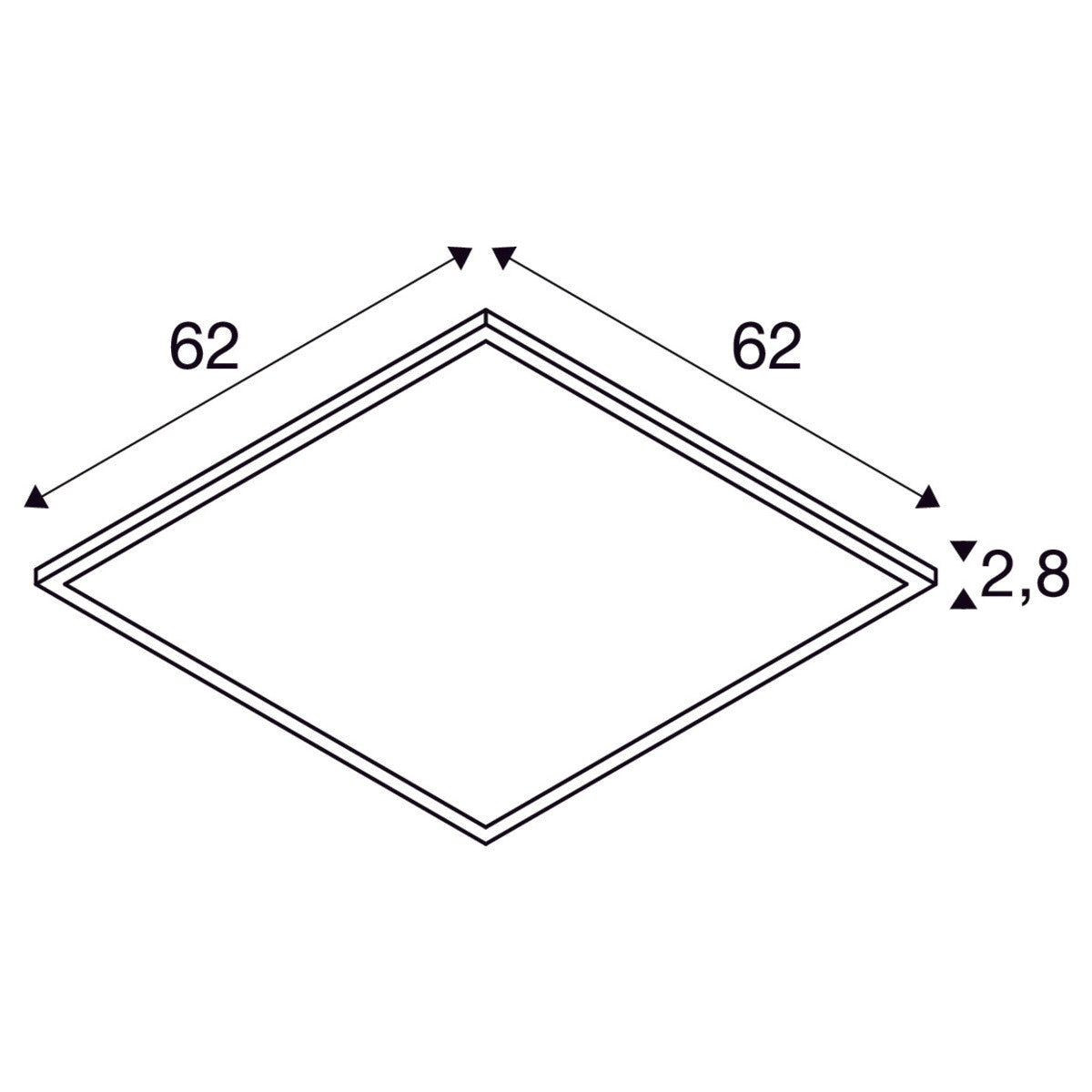

| length | 62cm |
| Width | 62cm |
| Height | 2.8cm |
| Installation form | square |
| Installation length | 61cm |
| Installation width | 61cm |
| Installation depth | 8cm |
