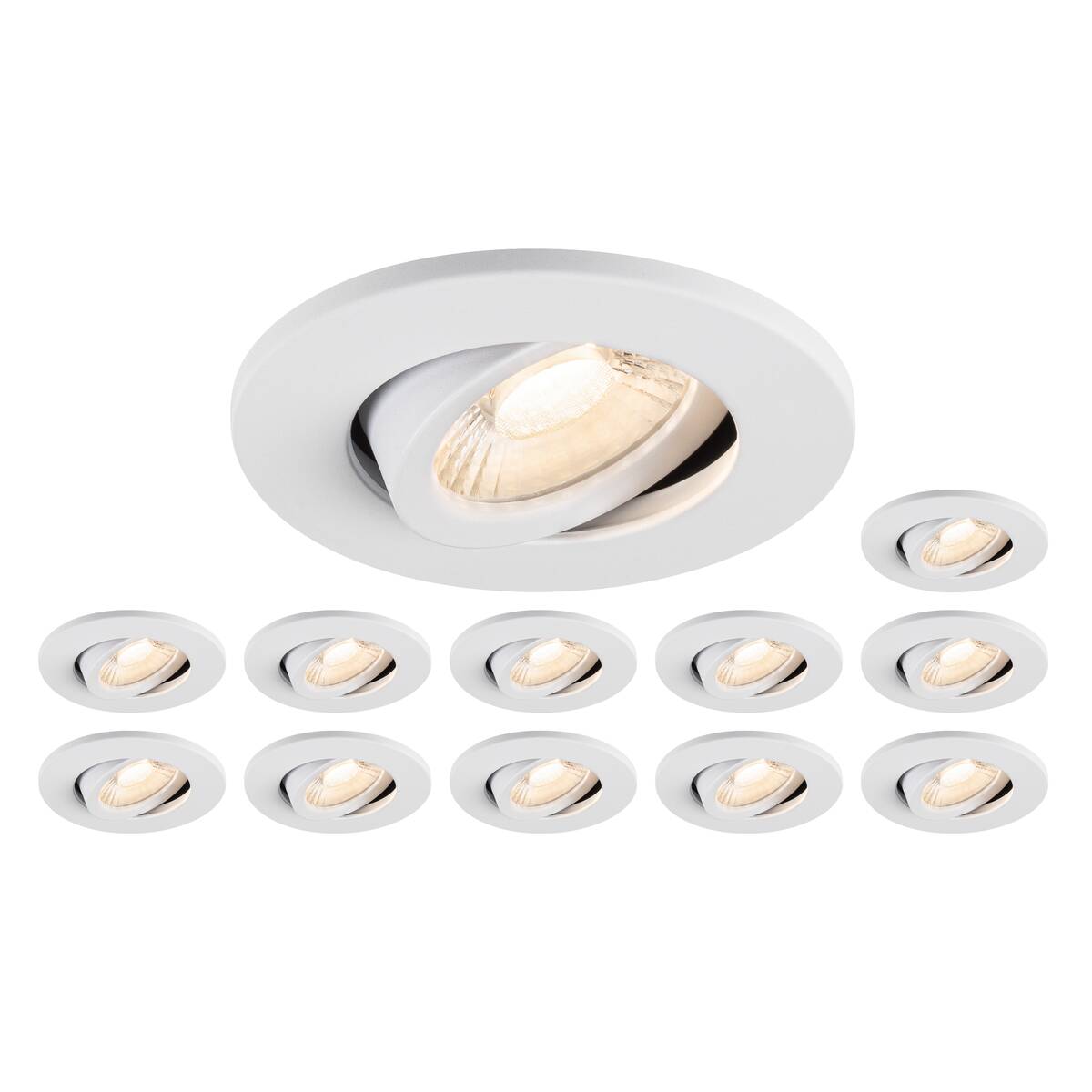

Set consisting of 12x 1007090 Universal Downlight Move Phase Ip20 38° and 1007092 Universal Downlight Cover Ip20 White
Lieferung innerhalb von 1-2 Tagen
14-Tage kostenfreie Retoure - Mehr Infos
Geld-zurück-Garantie & Käuferschutz
Fragen Sie einen Experten
Projekt geplant?
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen

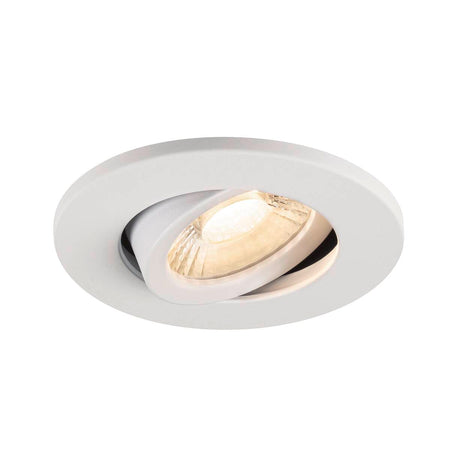

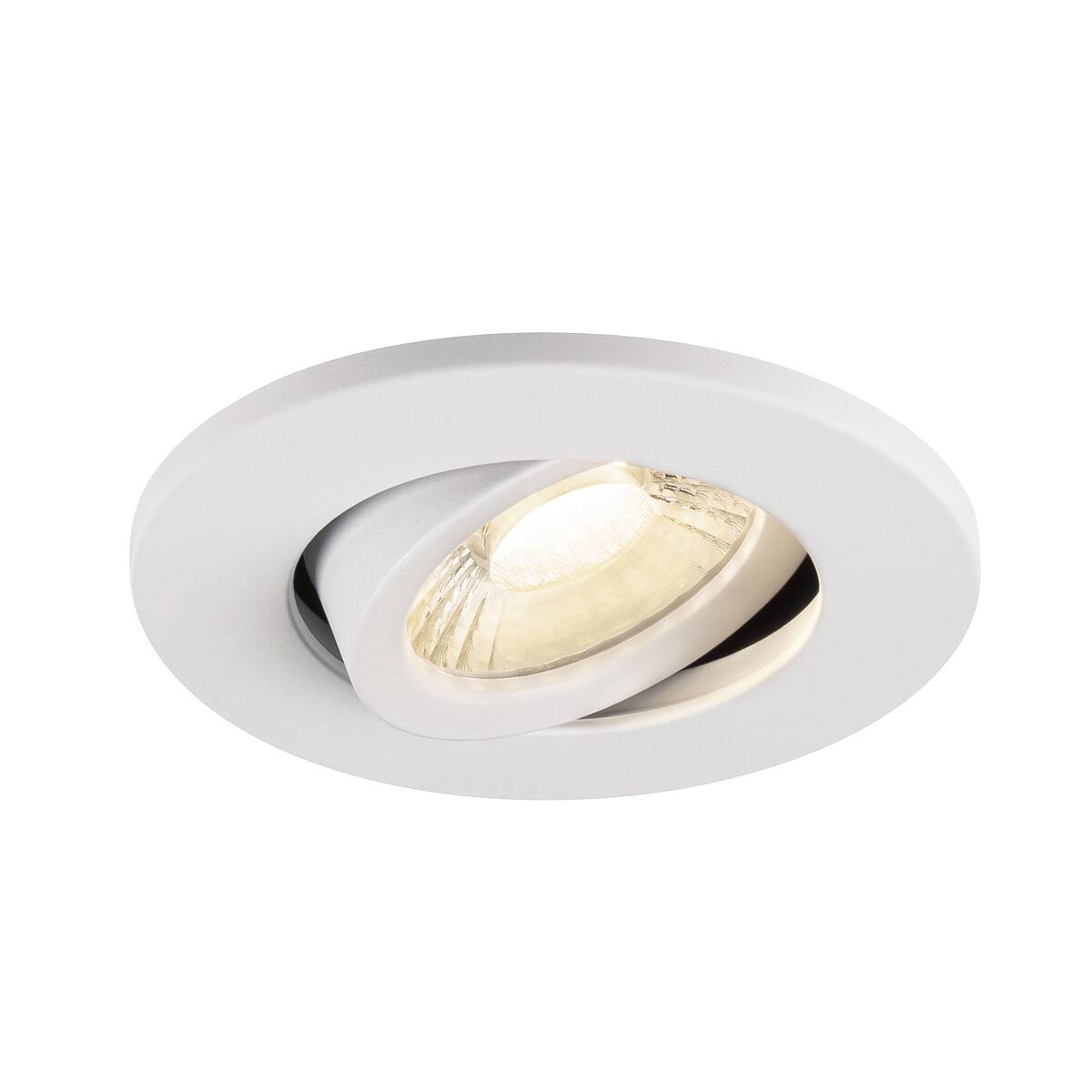

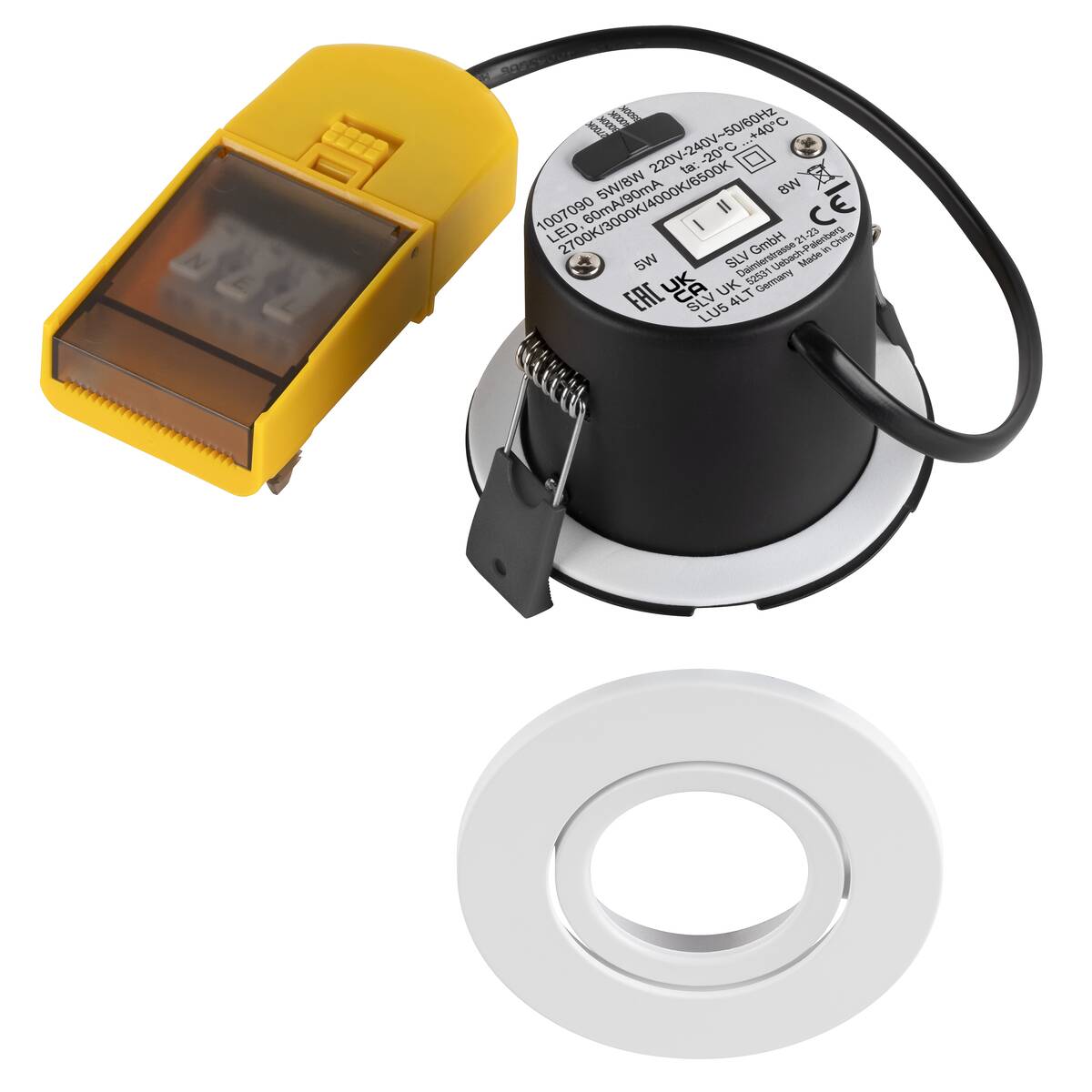

The UNIVERSAL DOWNLIGHT multipack contains 12 UNIVERSAL DOWNLIGHT MOVE PHAS recessed lights with matching covers in white. An all-round, worry-free package that makes planning with our UNIVERSAL DOWNLIGHT even easier. Thanks to the swivel function, you can align the light even more precisely and direct the light where you want it. Thanks to the CCT switch, the color temperature can be selected before installation (2700/3000/4000/6000K), giving you maximum flexibility on the construction site. Choosing the system output is just as easy - 5W or 8W. True-to-life color rendering is guaranteed thanks to CRI90. The associated Quick Connector Box rounds off the overall picture and makes installing the recessed lights easier than ever.
| TECHNICAL DATA | |
|---|---|
| Color | white |
| material | steel |
| Primary nominal voltage | 220-240V ~50/60Hz |
| Secondary in (mA/V) luminaire | 60/90mA |
| Current in A | 0.06/0.09 |
| Wattage [W] | 8th |
| Weighted wattage | 8th |
| EEC | E |
| Luminous flux in luminaire [lm] | 560 / 610 / 680 / 640 |
| Luminous flux [lm] | 560 / 610 / 680 / 640 |
| Luminous flux per watt | 70 |
| Light color temperature [k] | 2700/3000/4000/6500 |
| CRI | 90 |
| Beam angle in degrees | 38 |
| UGR | 28 |
| Type of dimming | Phase section |
| Lifespan in h | 35000 |
| Impact resistance class | IK02 |
| IP Class | IP20 |
| Protection class[I, II, III] | II |
| length | 8.8cm |
| Width | 8.8cm |
| Height | 4.85cm |
| diameter | 8.8cm |
| Installation form | around |
| Installation depth | 5.5cm |
| Installation diameter | 6.8cm |
