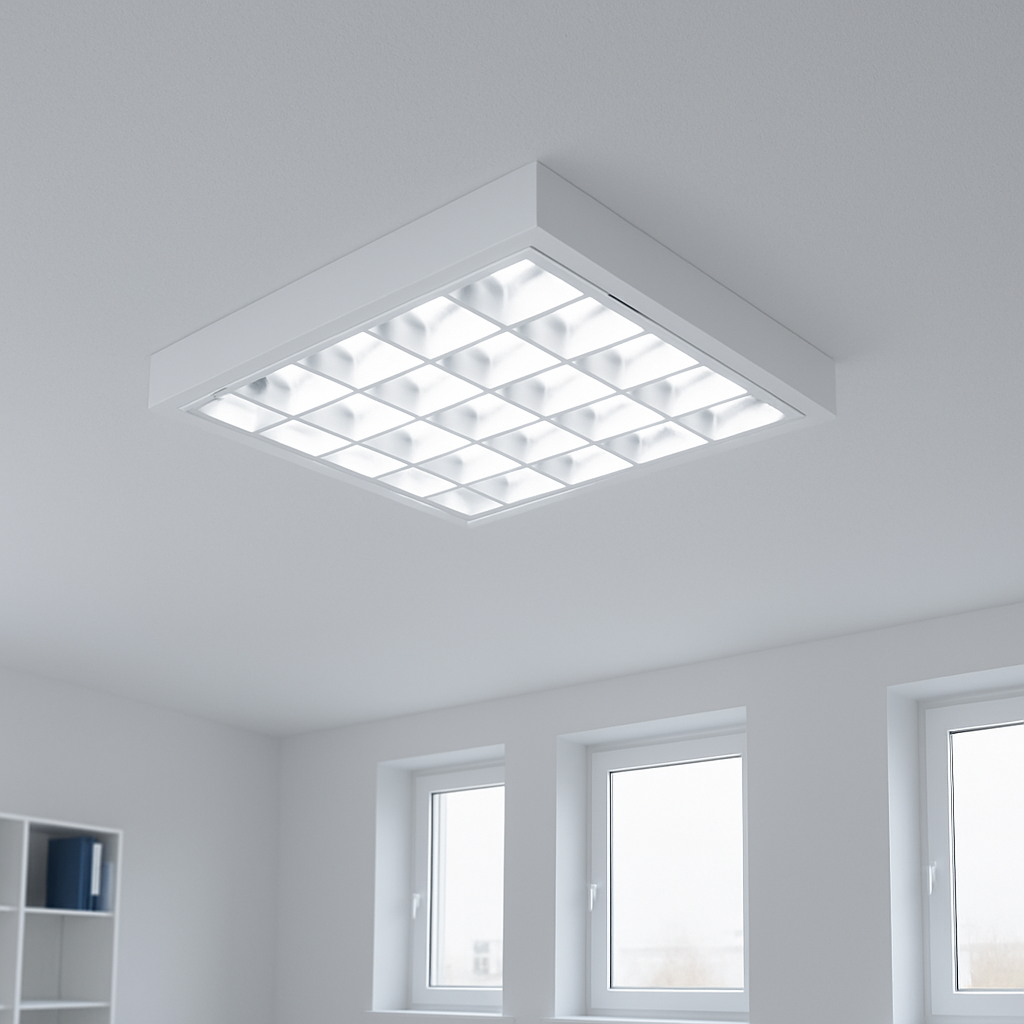

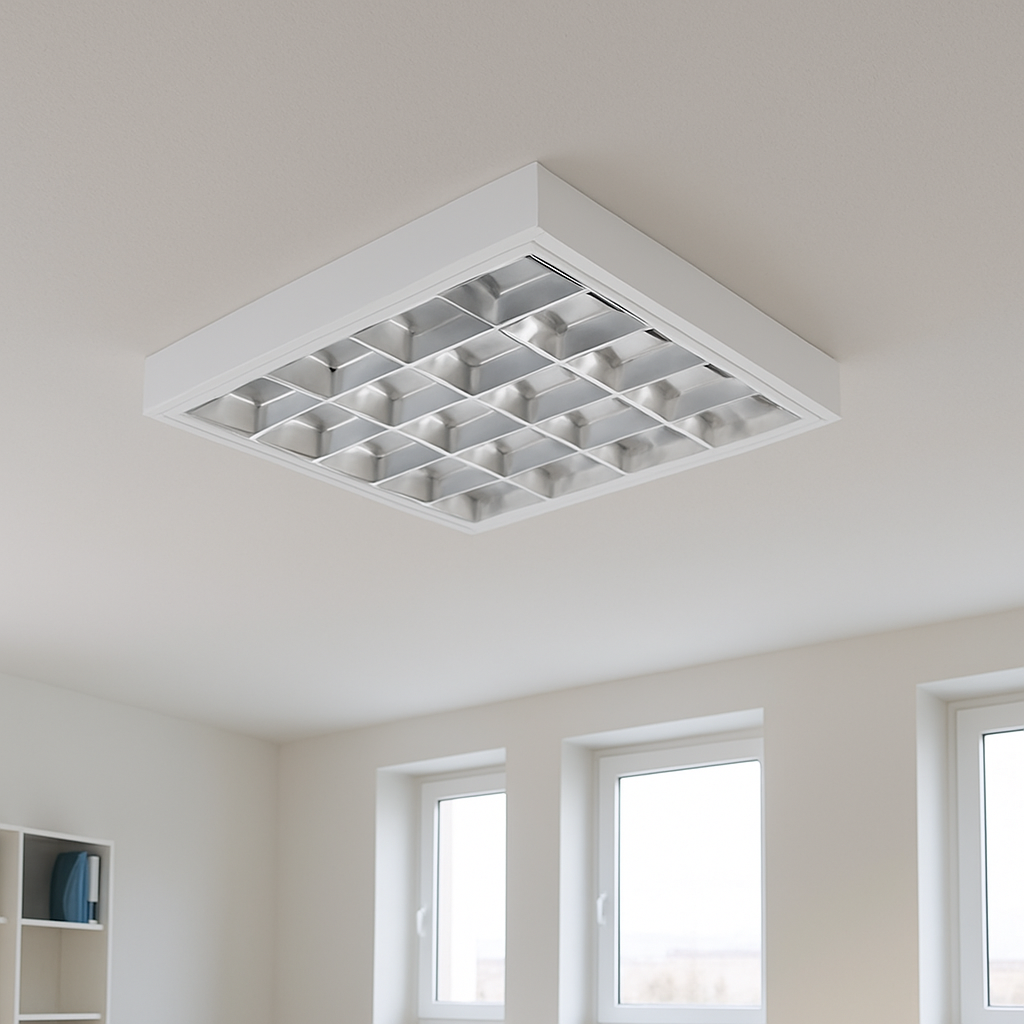

Surface-mounted grid light NOTUS EVG 418 NT EVG white G13 T8 IP20 230V
Lieferung innerhalb von 2-4 days Tagen
14-Tage kostenfreie Retoure - Mehr Infos
Geld-zurück-Garantie & Käuferschutz
Fragen Sie einen Experten
Projekt geplant?
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen
Wir beraten Sie gerne persönlich zu passenden Leuchten, Mengenstaffeln & Projektkonditionen.
Ideal für Elektriker, Bauherren und Renovierer.
Telefon: +49 2306 9129 687
Jetzt Projektpreis anfragen
- NOTUS are surface-mounted louvre lights that are characterized by their quick and easy installation.
- Grids are still a very popular lighting solution for offices or industrial facilities. The reason for this is the good lighting parameters at a good price, the simplicity of construction and the durability of the materials from which they are made.
- Delivery without bulbs
Technical data:
| Color : | white |
| Case material : | steel |
| Reflector material : | Aluminum alloy |
| Scope of application : | within |
| Height (mm) : | 75 |
| Width (mm] : | 615 |
| Length [mm] : | 615 |
| Weight : | 3000g/2420g |
| Rated voltage [V] : | 220-240 AC |
| Rated frequency [Hz] : | 50/60 |
| Maximum power [W] : | 4x18 |
| Light source : | T8 |
| Interchangeable lamp/light source : | Yes |
| Light source in the set : | no |
| Base : | G13 |
| Protection class against electric shock : | I |
| IP class (protection rating) : | 20 |
| Ambient temperature range [°C] : | 5÷25 |
| Installation location : | Ceiling mounting |
| Connection type : | Self-clamping cube |
| Cable cross section [mm2] : | 1÷2.5 |
| Ballast type : | EVG |
| Energy efficiency class of the ballast : | A2 |
| Stabilizer/lamp start : | cold warm |
| The luminaire is designed for lamps/light sources of the following energy efficiency classes : | A++,A+,A,B |
| Min. installation distance to the illuminated object : | 0.5m |
