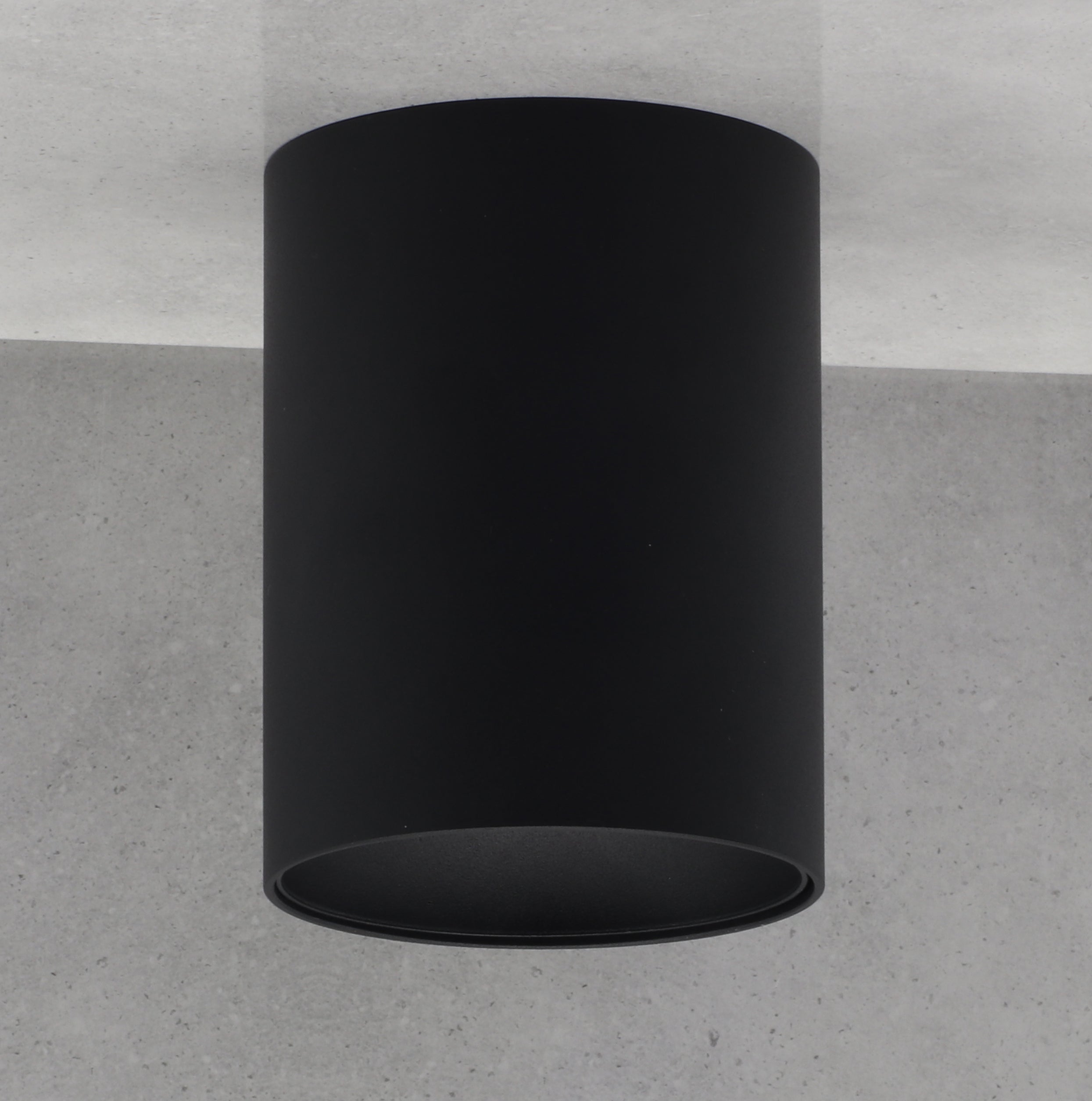

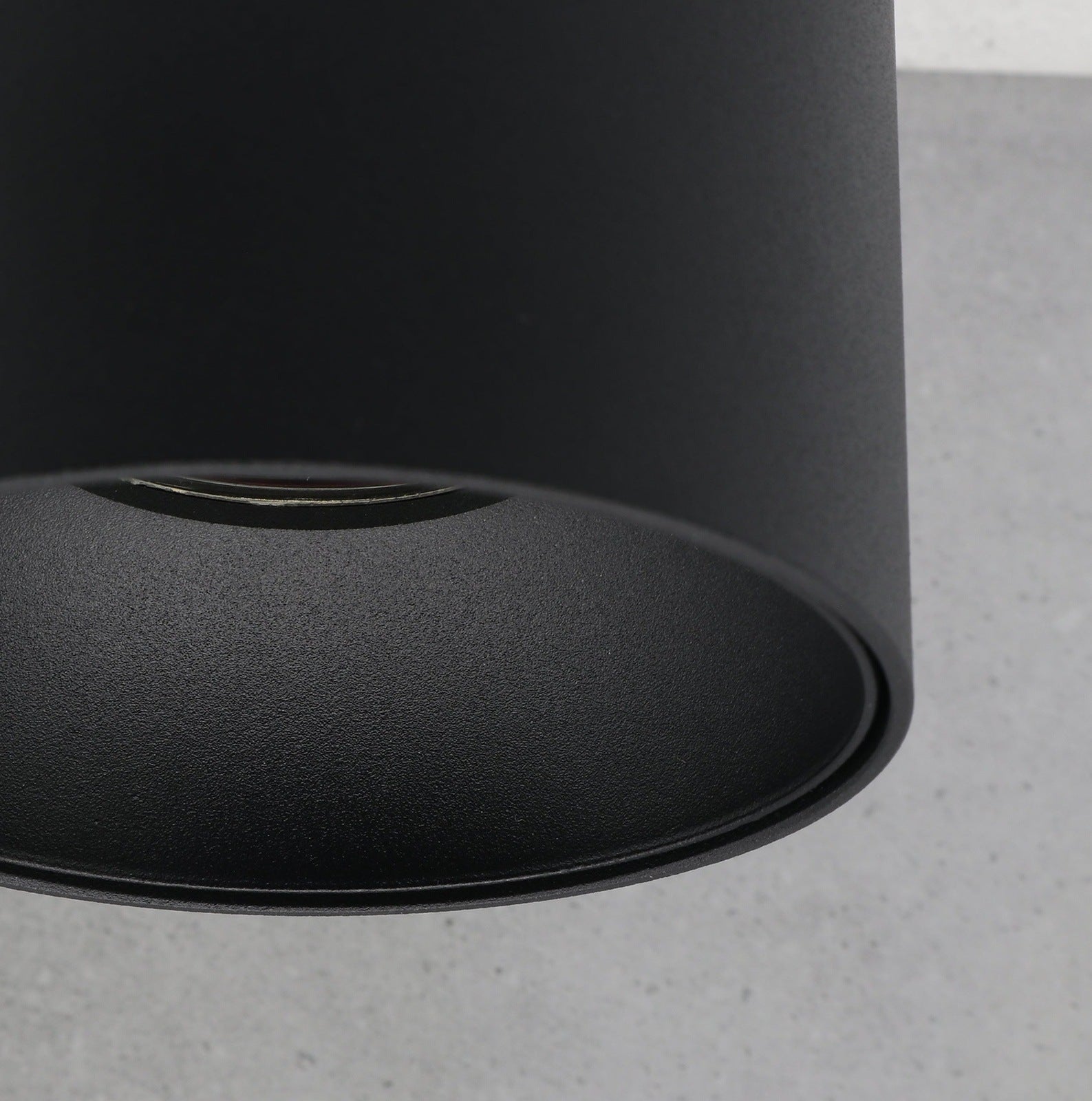

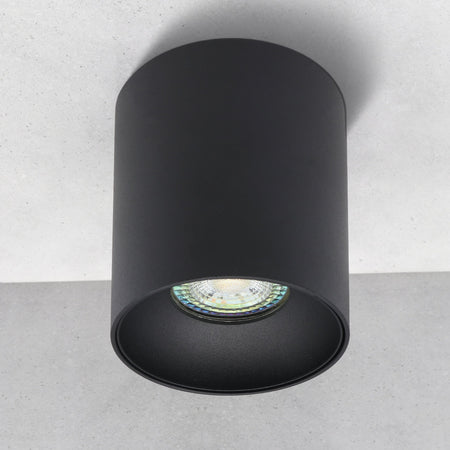

LED surface-mounted spotlight Riti Astral B/B | Round | Black & Black | GU10 | 230V | Indoor lighting
Fragen Sie einen Experten
General data:
- Color : Modern black that blends seamlessly into any interior design.
- Installation location : Ideal for ceiling mounting to optimally illuminate your room.
- Application : Designed for indoor use, it fits perfectly in living rooms, work areas or as accent lighting.

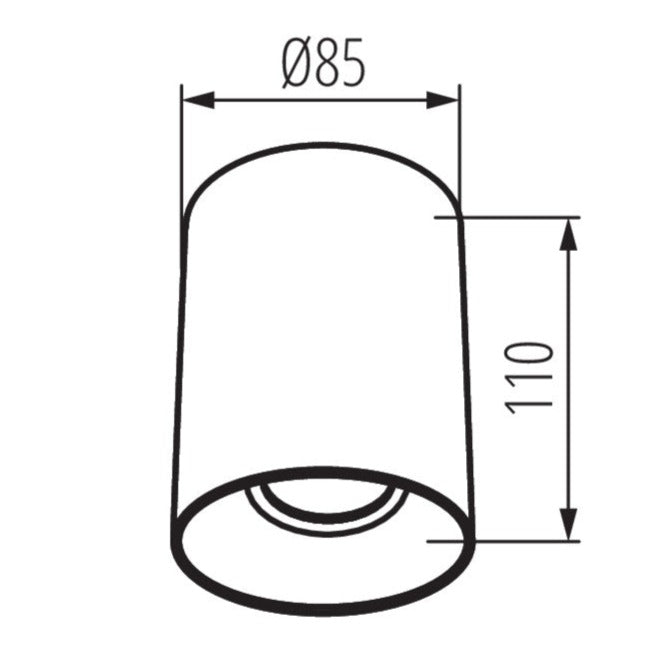

- Dimensions : A height of 110mm and a diameter of 85mm allow discreet placement in any room.
Technical data:
- Rated Voltage : Operates at standard household voltage of 220-240 AC, no additional equipment required.
- Maximum power : Supports bulbs up to 10W, enabling efficient lighting.
- Protection class : Class I offers a high level of protection against electric shock.
- Bulb type : Compatible with PAR16 bulbs and a GU10 socket, offering flexibility in the choice of bulbs.
- Material : The aluminum alloy of the housing ensures both robustness and an elegant appearance.
Scope of delivery:
The delivery includes the Astral surface-mounted light in black, the necessary mounting accessories and assembly instructions that enable quick and easy installation. You also benefit from a 3-year guarantee, which ensures long-term confidence in the quality of this product.
Conclusion:
The Astral surface-mounted spotlight in black is the ideal choice for anyone looking for an elegant, versatile and easy-to-install lighting solution. Its minimalist design and high-quality workmanship make it an indispensable part of modern living concepts. The ability to customize the light source offers additional versatility to create the perfect atmosphere in your home.
| GENERAL DATA: | |
|---|---|
| Color: | black + black |
| Installation location: | Ceiling mounting |
| Scope of application: | within |
| Min. installation distance to the illuminated object: | 0.5m |
| Height (mm): | 110 |
| Diameter [mm]: | 85 |
| TECHNICAL DATA: | |
| Nominal voltage [V]: | 220-240 AC |
| Nominal frequency [Hz]: | 50 |
| Maximum power [W]: | max10 |
| Protection class against electric shock: | I |
| Light sources: | PAR16 |
| Bulbs included in the set: | no |
| Base: | GU10 |
| Ambient temperature range [°C]: | 5÷25 |
| Housing material: | Aluminium alloy |
| Connection type: | Cube with screws |
| Cross-sectional area of the used Cables [mm²]: |
0.75÷1.5 |
| IP class (protection class): | 20 |
Assembly instructions Astral lamp
Step 1: Installing the mounting plate
Start by mounting the included mounting plate to the ceiling using the two screws provided. Please refer to the following image for a visual guide:
Step 2: Screwing the parts together
Both the mounting plate and the body of the lamp have matching threads. Screw these two parts together as shown in the following picture:
Step 3: Completing the assembly
Once you have successfully screwed the two parts together, the assembly is complete. The light will now be harmoniously attached to the ceiling.
