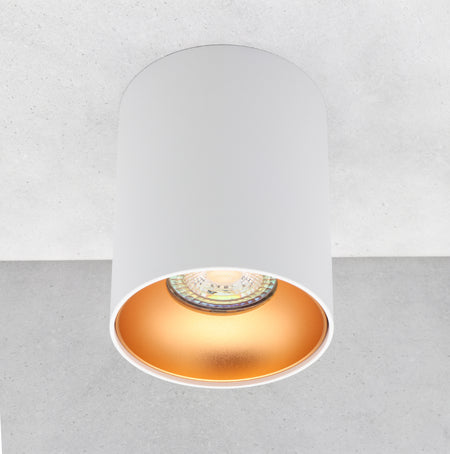

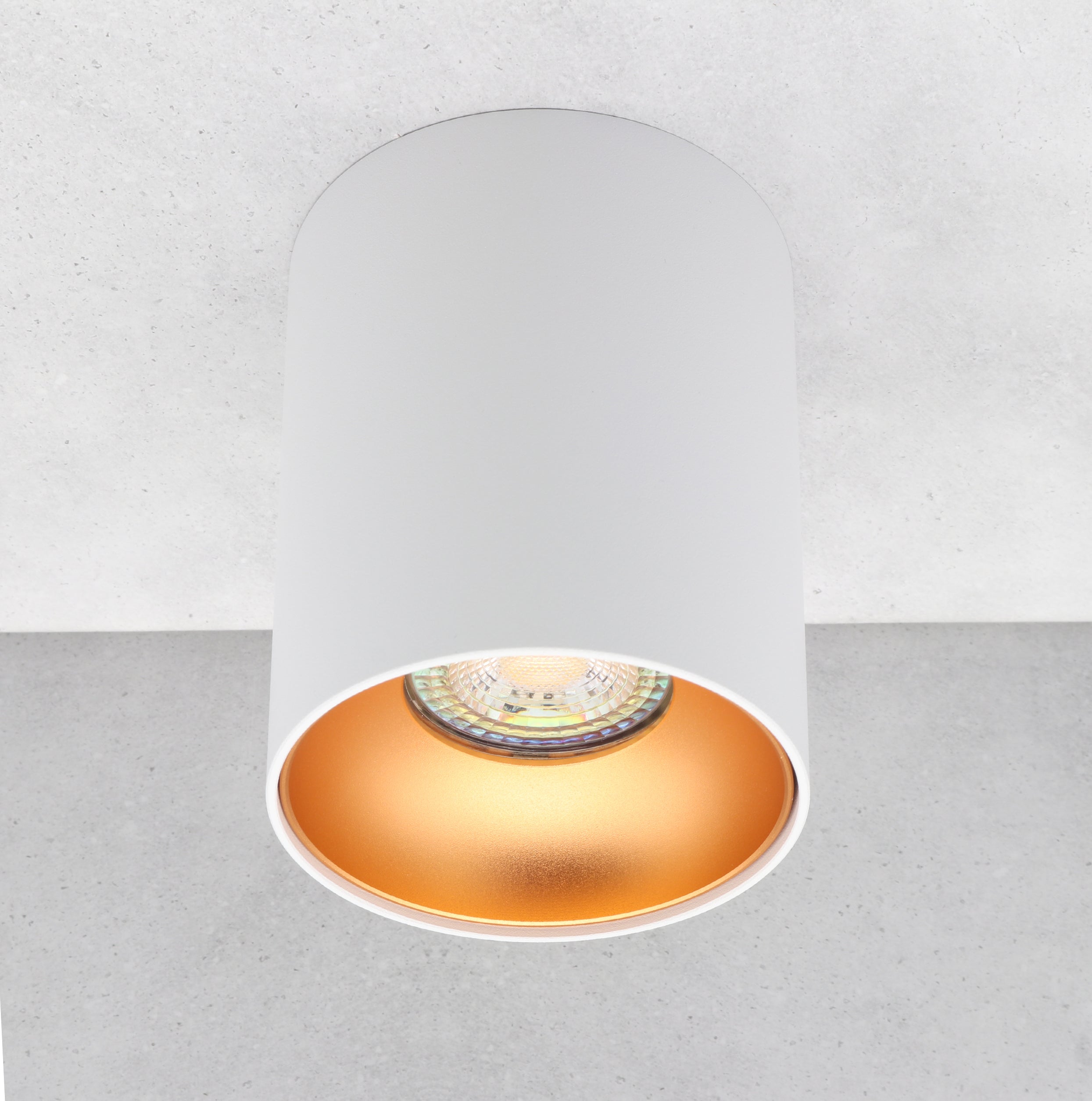

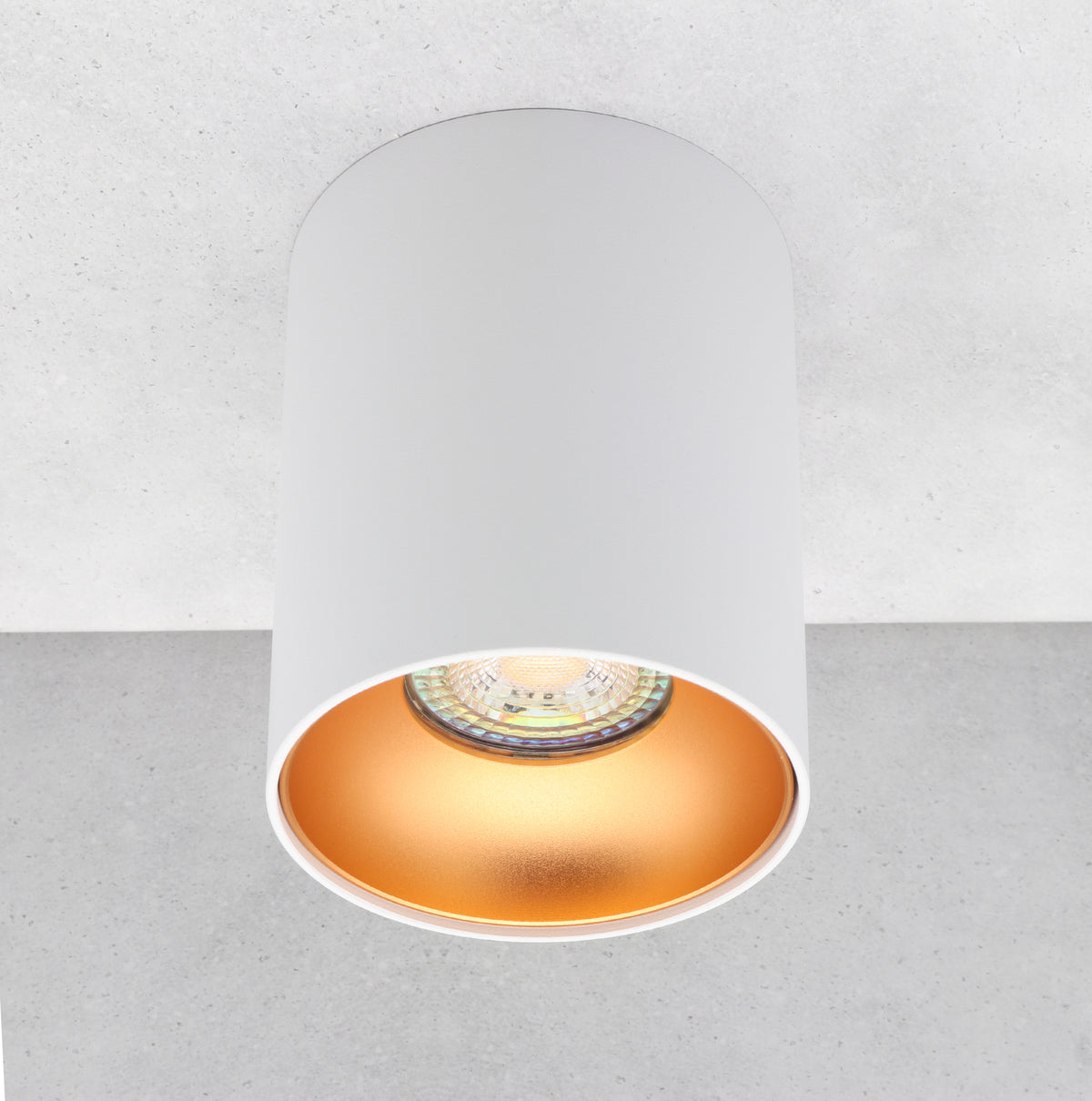

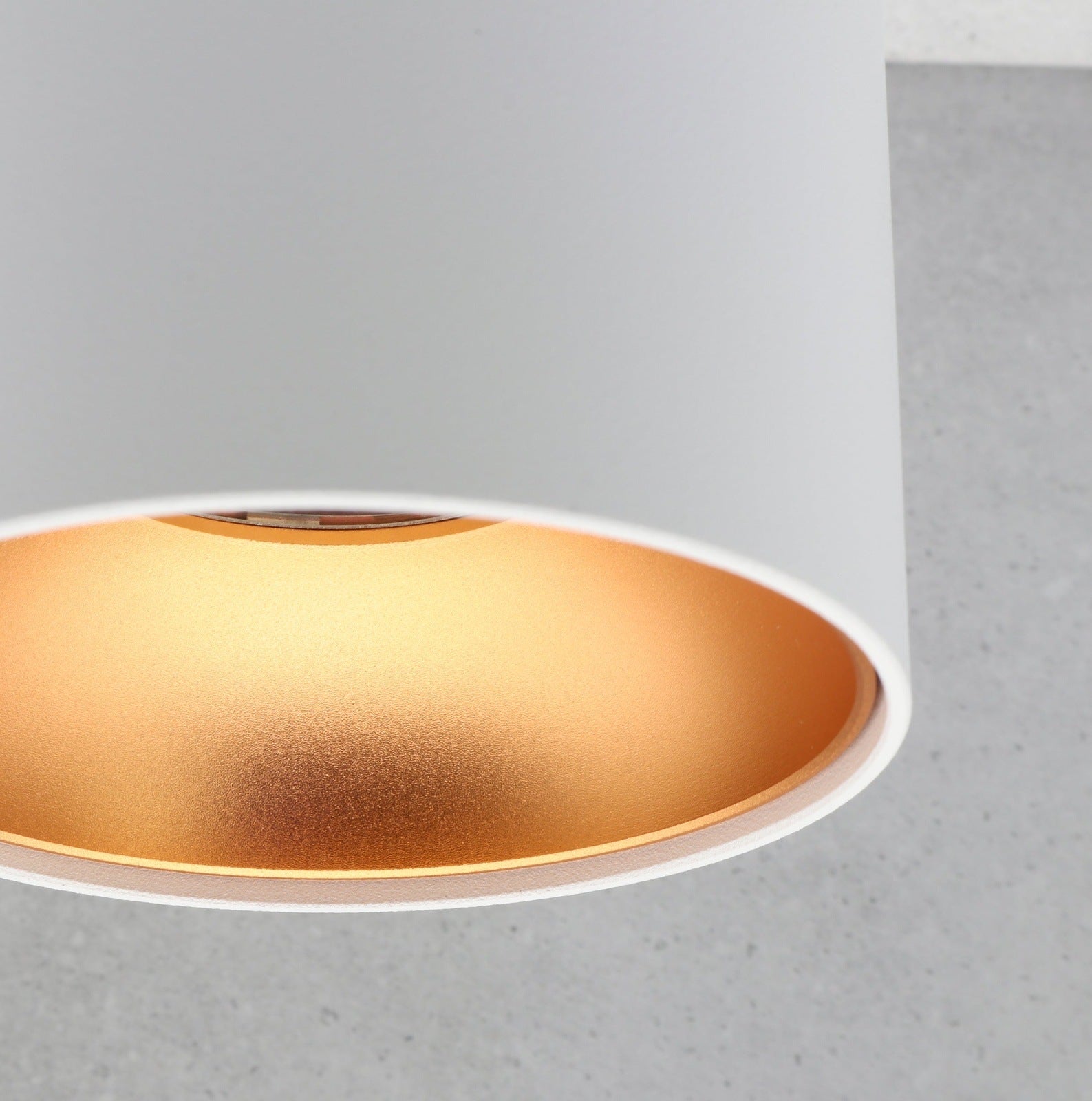

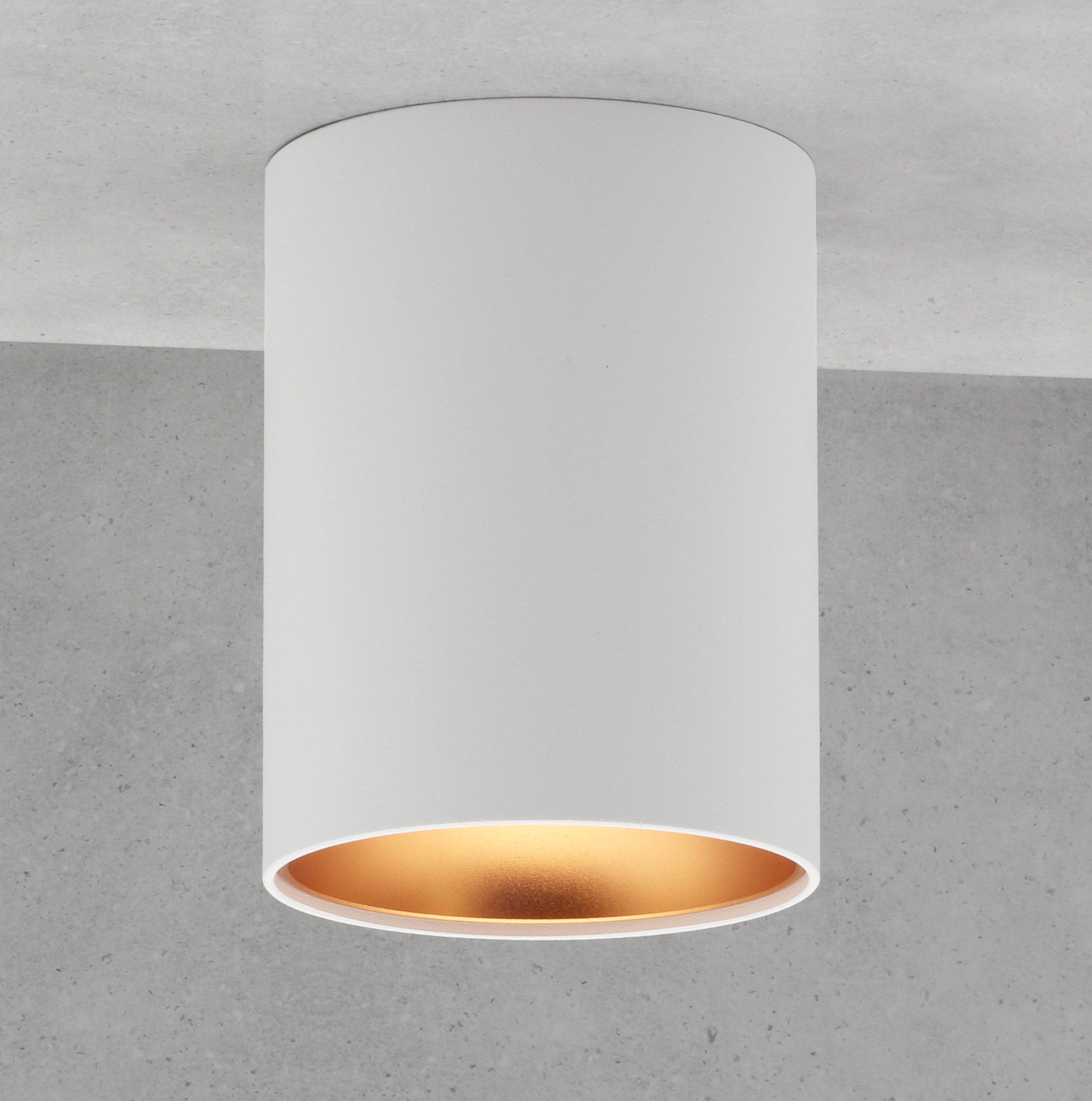

LED surface-mounted spotlight Riti Astral W/G | Round | White & copper-gold | GU10 | 230V | Indoor lighting

Fragen Sie einen Experten
General data:
- Color : A stylish white paired with elegant copper that blends seamlessly into any interior.
- Installation location : Specially designed for ceiling mounting, it offers a wide and efficient light distribution.
- Application : Perfect for indoor use, from living rooms to offices.

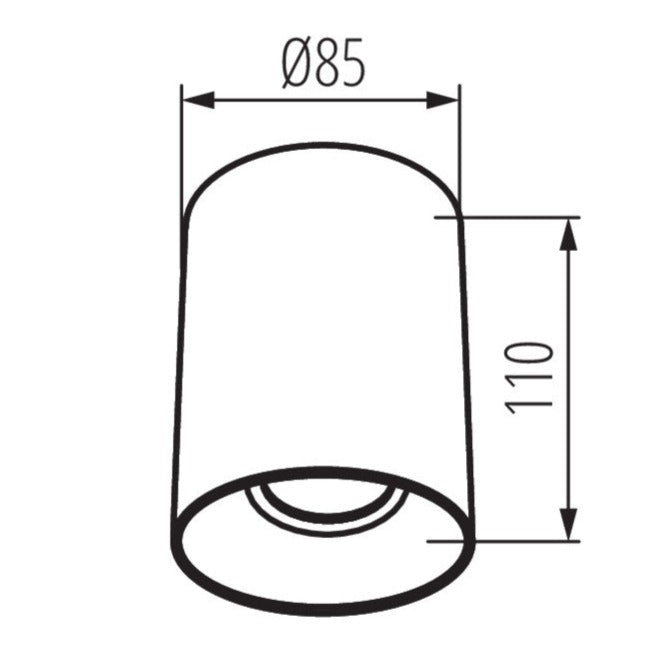

- Dimensions : With a height of 110mm and a diameter of 85mm, the lamp is compact yet eye-catching.
Technical data:
- Rated Voltage : Operates at a standard voltage of 220-240 AC, allowing easy integration into existing electrical systems.
- Maximum power : Supports bulbs up to a maximum power of 10W, which guarantees effective lighting.
- Protection class : Class I offers comprehensive protection against electric shock.
- Bulb type : Compatible with PAR16 bulbs and a GU10 socket, however the bulb is not included.
- Material : The aluminum alloy housing stands for durability and elegance.
Scope of delivery:
Included are the Astral surface-mounted light in white and copper, necessary mounting accessories and detailed installation instructions. You also benefit from a 3-year guarantee that guarantees quality and satisfaction.
Conclusion:
The Astral surface-mounted light in white + copper is the perfect choice for those looking for a combination of stylish design and flexible functionality. Its luxurious appearance, together with easy installation and the ability to change the light source as desired, makes it an ideal lighting solution for any interior.
GENERAL DATA: | |
---|---|
Color: | white + copper |
Installation location: | Ceiling mounting |
Scope of application: | within |
Min. installation distance to the illuminated object: | 0.5m |
Height (mm): | 110 |
Diameter [mm]: | 85 |
TECHNICAL DATA: | |
Nominal voltage [V]: | 220-240 AC |
Nominal frequency [Hz]: | 50 |
Maximum power [W]: | max10 |
Protection class against electric shock: | I |
Light sources: | PAR16 |
Bulbs included in the set: | no |
Base: | GU10 |
Ambient temperature range [°C]: | 5÷25 |
Housing material: | Aluminium alloy |
Connection type: | Cube with screws |
Cross-sectional area of the used Cables [mm²]: |
0.75÷1.5 |
IP class (protection class): | 20 |
Assembly instructions Astral lamp
Step 1: Installing the mounting plate
Start by mounting the included mounting plate to the ceiling using the two screws provided. Please refer to the following image for a visual guide:
Step 2: Screwing the parts together
Both the mounting plate and the body of the lamp have matching threads. Screw these two parts together as shown in the following picture:
Step 3: Completing the assembly
Once you have successfully screwed the two parts together, the assembly is complete. The light will now be harmoniously attached to the ceiling.
